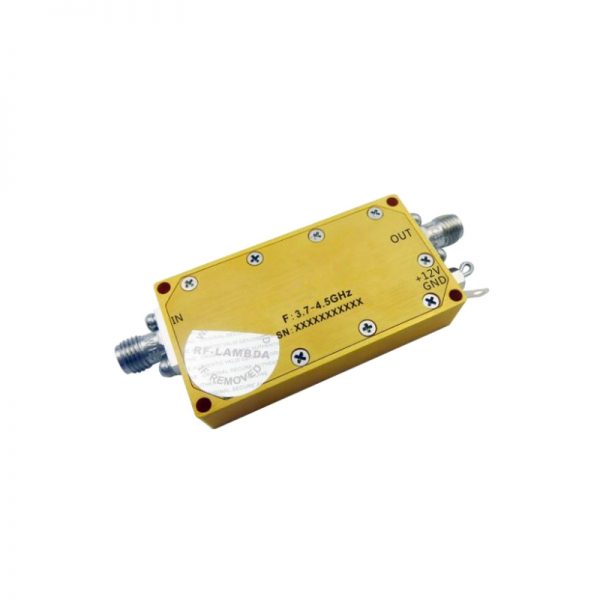

Ultra Wide Band Low Noise Amplifier From 3.7GHz to 4.5GHz With a Nominal 35dB Gain NF 1.3dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 3.7GHz to 4.5GHz With a Nominal 35dB Gain NF 1.3dB SMA Connectors

• Gain: 35dB Typical
• Noise Figure: 1.3dB Typical
• P1dB Output Power: +23dBm Typical
• Supply Voltage: +12V
• 50 Ohm Matched Input / Output

SKU: OLNA203700450A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 35dB Typical
• Noise Figure: 1.3dB Typical
• P1dB Output Power: +23dBm Typical
• Supply Voltage: +12V
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

034-OLNA203700450A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

3.7

Max. Pass Band Frequency (GHz)

4.5

Gain (dB)

35

NF (dB)

1.3

P1dB (dBm)

23

IP3 (dBm)

33

VSWR

1.5

"Voltage (VDC)"

12

"Current (mA)"

350

Connection Type

SMA
