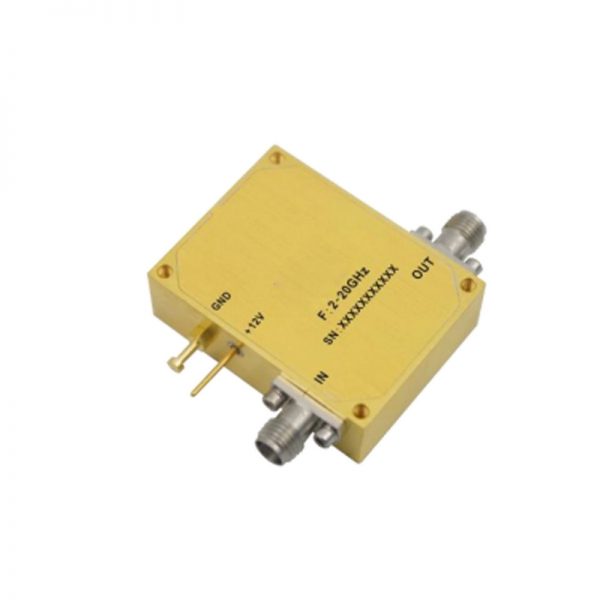

Ultra Wide Band Low Noise Amplifier From 2GHz to 20GHz With a Nominal 29dB Gain NF 3dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 2GHz to 20GHz With a Nominal 29dB Gain NF 3dB SMA Connectors

• Gain: 29dB Typical
• Noise Figure:2.5dB Typical
• P1dB Output Power: +26dBm Typical
• Supply Voltage: +12V @ 300mA

SKU: OLNA302002000B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 29dB Typical
• Noise Figure:2.5dB Typical
• P1dB Output Power: +26dBm Typical
• Supply Voltage: +12V @ 300mA



Data Sheet ( Download Datasheet PDF )

054-OLNA302002000B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

2

Max. Pass Band Frequency (GHz)

20

Gain (dB)

29

NF (dB)

3

P1dB (dBm)

23

IP3 (dBm)

31.5

VSWR

1.5

"Voltage (VDC)"

12

"Current (mA)"

300

Connection Type

SMA
