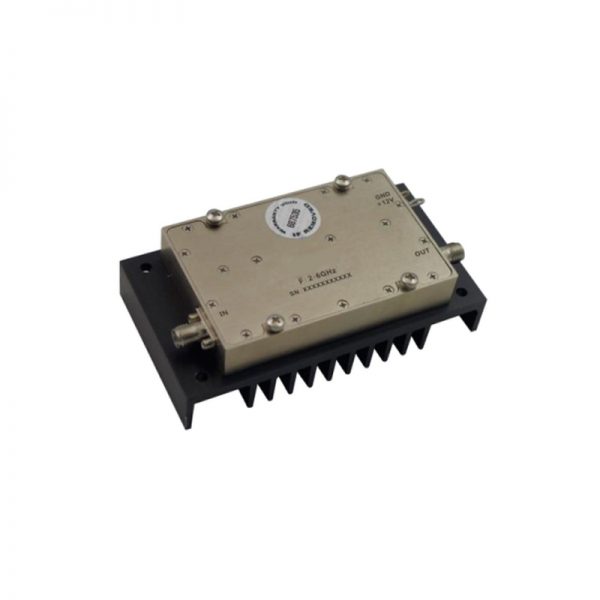

Ultra Wide Band Low Noise Amplifier From 2GHz to 6GHz With a Nominal 42dB Gain NF 2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 2GHz to 6GHz With a Nominal 42dB Gain NF 2dB SMA Connectors

0 out of 5

• Gain:46dB Typical
• Noise Figure: 1.6dB Typical
• P1dB Output Power: +24dBm Typical
• Supply Voltage: +12V
• 50 Ohm Matched

SKU: OLNA302000600A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:46dB Typical
• Noise Figure: 1.6dB Typical
• P1dB Output Power: +24dBm Typical
• Supply Voltage: +12V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

071-OLNA302000600A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

2

Max. Pass Band Frequency (GHz)

6

Gain (dB)

42

NF (dB)

2

P1dB (dBm)

23

IP3 (dBm)

30

VSWR

1.6

"Voltage (VDC)"

12

"Current (mA)"

280

Connection Type

SMA
