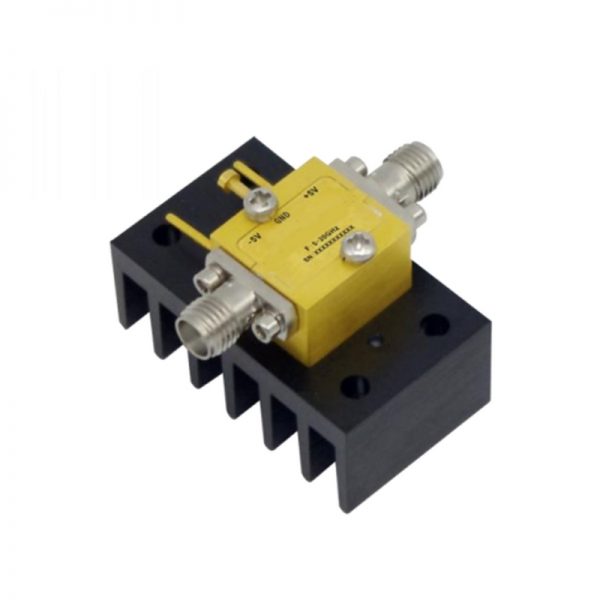

Ultra Wide Band Low Noise Amplifier From 5GHz to 20GHz With a Nominal 12dB Gain NF 2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 5GHz to 20GHz With a Nominal 12dB Gain NF 2dB SMA Connectors

0 out of 5

• Gain: 13dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +15dBmTypical
• Supply Voltage: +5V @ 30mA
• 50 Ohm Matched Input / Output
• Size: 0.63” x 0.59” x 0.39”

SKU: OLNA205002000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 13dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +15dBmTypical
• Supply Voltage: +5V @ 30mA
• 50 Ohm Matched Input / Output
• Size: 0.63” x 0.59” x 0.39”



Data Sheet ( Download Datasheet PDF )

057-OLNA205002000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

5

Max. Pass Band Frequency (GHz)

20

Gain (dB)

12

NF (dB)

2

P1dB (dBm)

15

IP3 (dBm)

26

VSWR

1.6

"Voltage (VDC)"

5

"Current (mA)"

30

Connection Type

SMA
