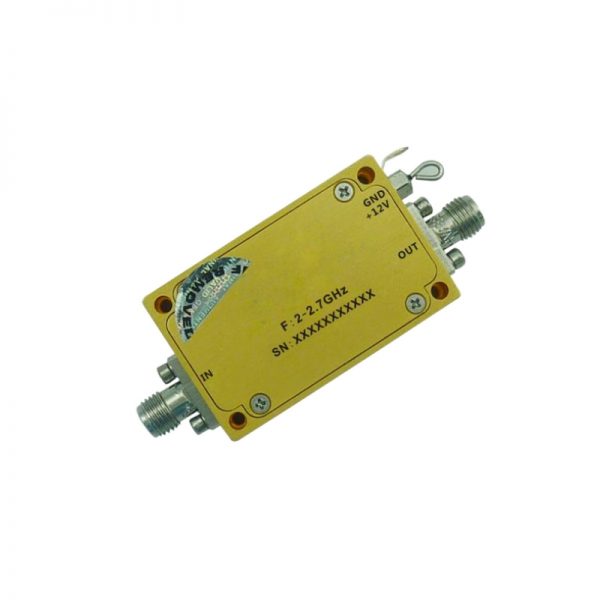

Ultra Wide Band Low Noise Amplifier From 2GHz to 2.7GHz With a Nominal 45dB Gain NF 1.3dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 2GHz to 2.7GHz With a Nominal 45dB Gain NF 1.3dB SMA Connectors

0 out of 5

• Gain:45dB Typical
• Functional Bandwidth : 1.5GHz to 3GHz
• Noise Figure: 1.0dB Typical
• P1dB Output Power: +16dBm Typical
• Supply Voltage: +12V
• 50 Ohm Matched

SKU: OLNA102000270A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:45dB Typical
• Functional Bandwidth : 1.5GHz to 3GHz
• Noise Figure: 1.0dB Typical
• P1dB Output Power: +16dBm Typical
• Supply Voltage: +12V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

033-OLNA102000270A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

2

Max. Pass Band Frequency (GHz)

2.7

Gain (dB)

45

NF (dB)

1.3

P1dB (dBm)

16

IP3 (dBm)

27

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

220

Connection Type

SMA
