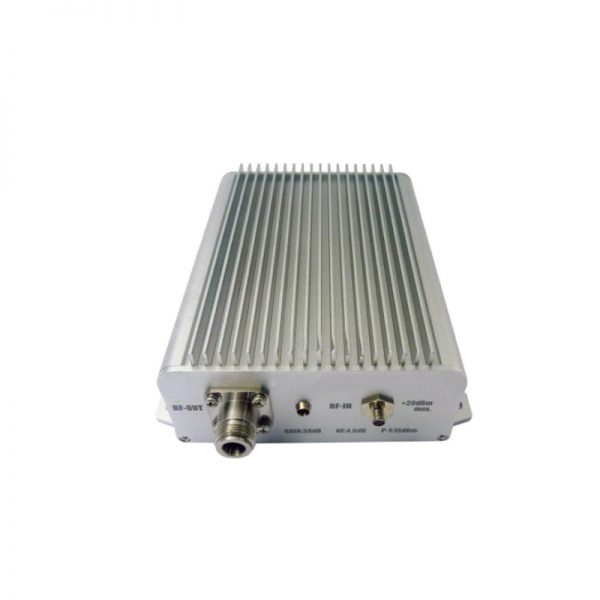

Ultra Wide Band Low Noise Amplifier From 1GHz to 18GHz With a Nominal 28dB Gain NF 3.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 18GHz With a Nominal 28dB Gain NF 3.5dB SMA Connectors

0 out of 5

• High Output Power 16dBm typical.
• High peak to average handling capability.
• High linearity and low noise figure.
• Convenient AC Power Input. (AC 110V ~ 220V)
• Integrated Heat Sink and Fan.

SKU: OACLA01001800A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• High Output Power 16dBm typical.
• High peak to average handling capability.
• High linearity and low noise figure.
• Convenient AC Power Input. (AC 110V ~ 220V)
• Integrated Heat Sink and Fan.



Data Sheet ( Download Datasheet PDF )

109-OACLA01001800A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

18

Gain (dB)

28

NF (dB)

3.5

P1dB (dBm)

15

IP3 (dBm)

24

VSWR

2

"Voltage (VDC)"

110-220V

"Current (mA)"

60

Connection Type

SMA
