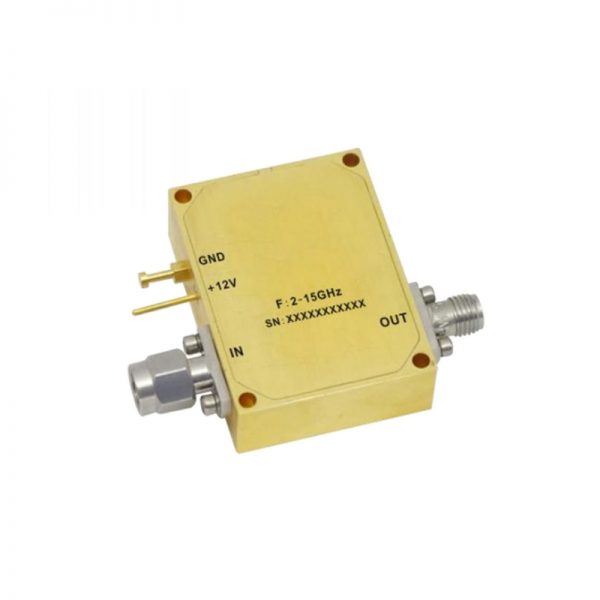

Ultra Wide Band Low Noise Amplifier From 2GHz to 15GHz With a Nominal 31dB Gain NF 3.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 2GHz to 15GHz With a Nominal 31dB Gain NF 3.5dB SMA Connectors

0 out of 5

• Gain: 33dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +25dBm Typical
• Supply Voltage: +12V @ 320 mA
• 50 Ohm Matched Input / Output
• Size: 1.58x 1.18” x 0.39”

SKU: OLNA402001500A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 33dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +25dBm Typical
• Supply Voltage: +12V @ 320 mA
• 50 Ohm Matched Input / Output
• Size: 1.58x 1.18” x 0.39”



Data Sheet ( Download Datasheet PDF )

134-OLNA402001500A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

2

Max. Pass Band Frequency (GHz)

15

Gain (dB)

31

NF (dB)

3.5

P1dB (dBm)

23.5

IP3 (dBm)

34

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

380

Connection Type

SMA
