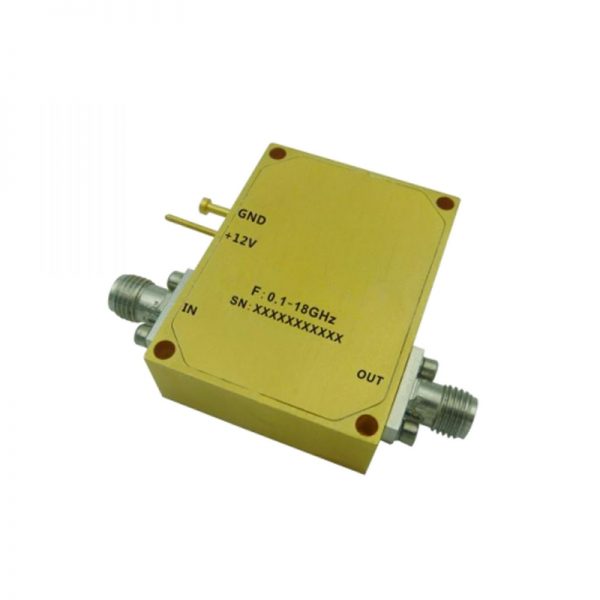

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 18GHz With a Nominal 29dB Gain NF 2.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 18GHz With a Nominal 29dB Gain NF 2.8dB SMA Connectors

0 out of 5

• Gain:33dB Typical
• Functional Bandwidth : 0.1 GHz to 18 GHz
• Noise Figure:2.2dBTypical
• P1dB Output Power: +26dBm Typical
• Supply Voltage: +12V @ 320mA
• 50 Ohm Matched Input / Output
• Size: 1.58x 1.18” x 0.39”

SKU: OLNA400101800A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:33dB Typical
• Functional Bandwidth : 0.1 GHz to 18 GHz
• Noise Figure:2.2dBTypical
• P1dB Output Power: +26dBm Typical
• Supply Voltage: +12V @ 320mA
• 50 Ohm Matched Input / Output
• Size: 1.58x 1.18” x 0.39”



Data Sheet ( Download Datasheet PDF )

149-OLNA400101800A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.1

Max. Pass Band Frequency (GHz)

18

Gain (dB)

29

NF (dB)

2.8

P1dB (dBm)

22

IP3 (dBm)

32

VSWR

2

"Voltage (VDC)"

12

"Current (mA)"

320

Connection Type

SMA
