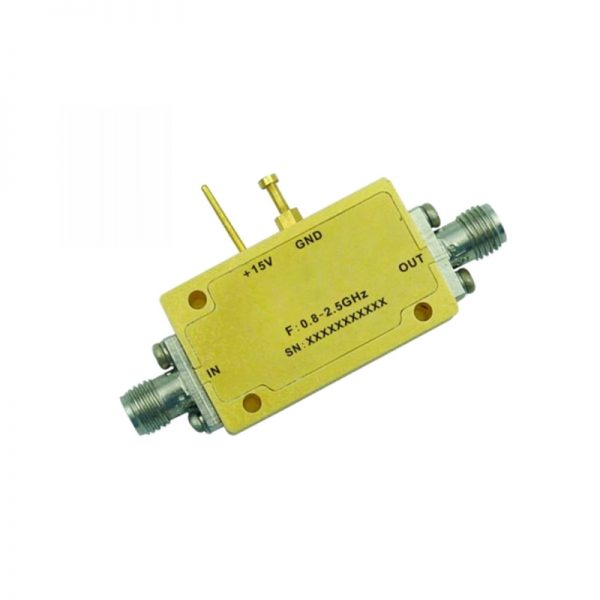

Ultra Wide Band Low Noise Amplifier From 0.8GHz to 2.5GHz With a Nominal 58dB Gain NF 1dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.8GHz to 2.5GHz With a Nominal 58dB Gain NF 1dB SMA Connectors

0 out of 5

• Gain: 60 dB Typical
• Noise Figure: 0.8dB Typical
• P1dB Output Power: +19dBm Typical
• Supply Voltage: +15V
• 50 Ohm Matched

SKU: OLNA100800250A Categories: Low Noise Amplifier, Routing

Description

Key Specifications

• Gain: 60 dB Typical
• Noise Figure: 0.8dB Typical
• P1dB Output Power: +19dBm Typical
• Supply Voltage: +15V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

166-OLNA100800250A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.8

Max. Pass Band Frequency (GHz)

2.5

Gain (dB)

58

NF (dB)

1

P1dB (dBm)

16

IP3 (dBm)

32

VSWR

2

"Voltage (VDC)"

15

"Current (mA)"

175

Connection Type

SMA
