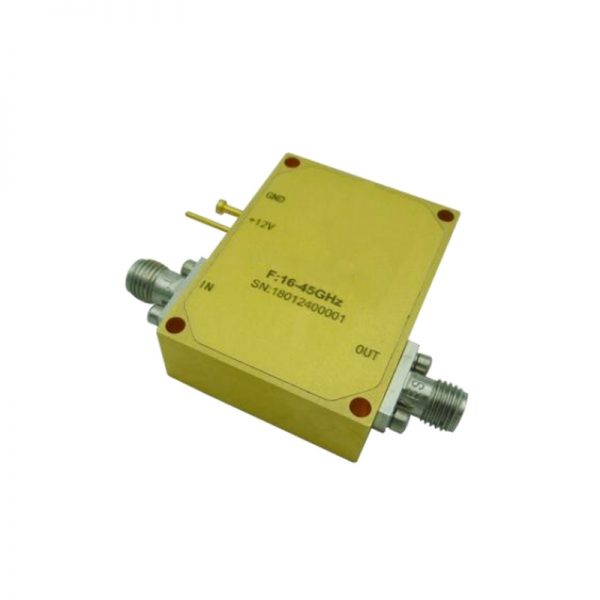

Ultra Wide Band Low Noise Amplifier From 16GHz to 45GHz With a Nominal 38dB Gain NF 4.5dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 16GHz to 45GHz With a Nominal 38dB Gain NF 4.5dB 2.92mm Connectors

• Gain: 36dB Typical
• Noise Figure: 6.5dB Typical
• P1dB Output Power: +21dBm Typical
• Supply Voltage: +12V @ 300mA
• 50 Ohm Matched Input / Output

SKU: OLNA416004500A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 36dB Typical
• Noise Figure: 6.5dB Typical
• P1dB Output Power: +21dBm Typical
• Supply Voltage: +12V @ 300mA
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

101-OLNA416004500A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

16

Max. Pass Band Frequency (GHz)

45

Gain (dB)

38

NF (dB)

4.5

P1dB (dBm)

20

IP3 (dBm)

27

VSWR

2.2

"Voltage (VDC)"

12

"Current (mA)"

390

Connection Type

2.92mm
