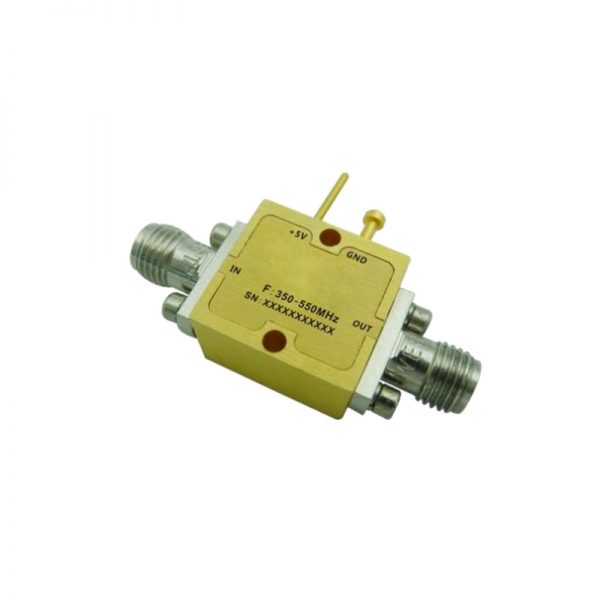

Ultra Wide Band Low Noise Amplifier From 0.35GHz to 0.55GHz With a Nominal 16dB Gain NF 1.2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.35GHz to 0.55GHz With a Nominal 16dB Gain NF 1.2dB SMA Connectors

0 out of 5

• Gain: 17dB Typical
• Noise Figure: 1.1dB Typical
• P1dB Output Power: +20dBm
• Supply Voltage: +5V

SKU: OLNA100350055A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 17dB Typical
• Noise Figure: 1.1dB Typical
• P1dB Output Power: +20dBm
• Supply Voltage: +5V



Data Sheet ( Download Datasheet PDF )

085-OLNA100350055A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.35

Max. Pass Band Frequency (GHz)

0.55

Gain (dB)

16

NF (dB)

1.2

P1dB (dBm)

21

IP3 (dBm)

36

VSWR

1.6

"Voltage (VDC)"

5

"Current (mA)"

115

Connection Type

SMA
