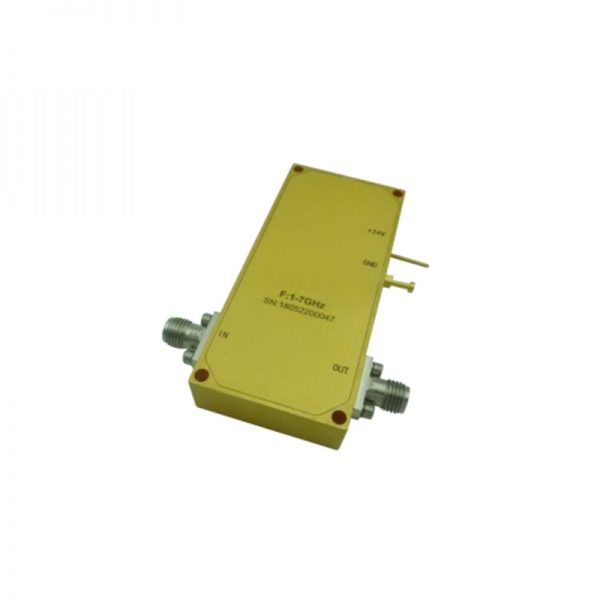

Ultra Wide Band Low Noise Amplifier From 1GHz to 7GHz With a Nominal 42dB Gain NF 1.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 7GHz With a Nominal 42dB Gain NF 1.5dB SMA Connectors

0 out of 5

• Gain:42dB Typical
• Noise Figure: 1.2dB Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +24V @200mA
• 50 Ohm Matched Input / Output
• Size: 1.18x 2.6” x 0.47”

SKU: OLNA201000700A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:42dB Typical
• Noise Figure: 1.2dB Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +24V @200mA
• 50 Ohm Matched Input / Output
• Size: 1.18x 2.6” x 0.47”



Data Sheet ( Download Datasheet PDF )

106-OLNA201000700A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

7

Gain (dB)

42

NF (dB)

1.5

P1dB (dBm)

22

IP3 (dBm)

33

VSWR

1.5

"Voltage (VDC)"

24

"Current (mA)"

200

Connection Type

SMA
