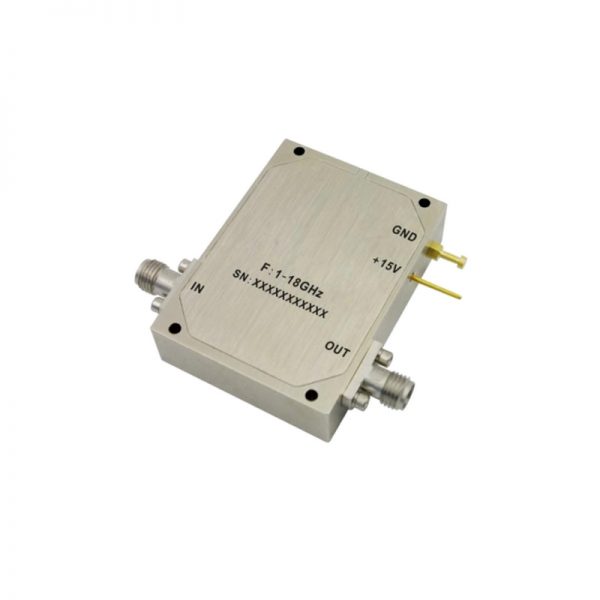

Ultra Wide Band Low Noise Amplifier From 1GHz to 18GHz With a Nominal 42dB Gain NF 3dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 18GHz With a Nominal 42dB Gain NF 3dB SMA Connectors

0 out of 5

• Gain:43dB Typical
• Noise Figure:2.5dB Typical
• P1dB Output Power: +14dBm full band
• Supply Voltage: +15V @ 200mA
• 50 Ohm Matched

SKU: OLNA401001800C Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:43dB Typical
• Noise Figure:2.5dB Typical
• P1dB Output Power: +14dBm full band
• Supply Voltage: +15V @ 200mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

126-OLNA401001800C



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

18

Gain (dB)

42

NF (dB)

3

P1dB (dBm)

16

IP3 (dBm)

28

VSWR

1.5

"Voltage (VDC)"

15

"Current (mA)"

300

Connection Type

SMA
