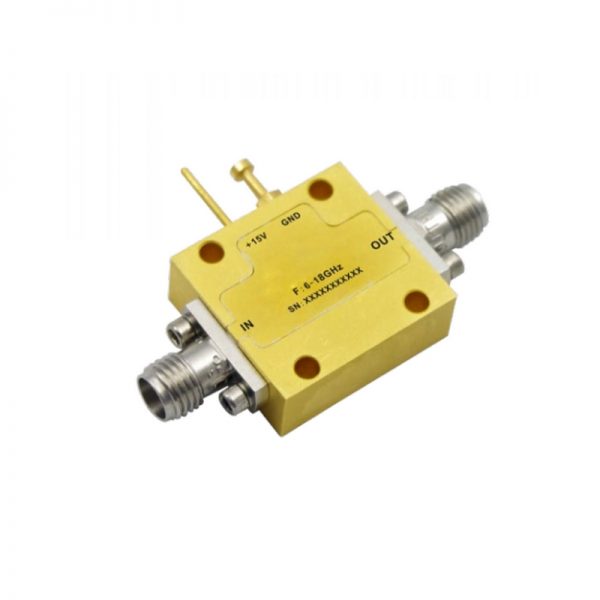

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 18GHz With a Nominal 32dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 18GHz With a Nominal 32dB Gain NF 2.5dB SMA Connectors

0 out of 5

High Output Power26dBm.
• Microwave Radio and VSAT.
• TelecomInfrastructure Applications.
• High peak to average handling capability.
• High linearity and low noise figure.
• Convenient AC Power Input.
• Integrated Heat Sink and Fan.
• All specifications can be modified upon request

SKU: OACLA00101000A Categories: Low Noise Amplifier, Routing

Description

Key Specifications

High Output Power26dBm.
• Microwave Radio and VSAT.
• TelecomInfrastructure Applications.
• High peak to average handling capability.
• High linearity and low noise figure.
• Convenient AC Power Input.
• Integrated Heat Sink and Fan.
• All specifications can be modified upon request



Data Sheet ( Download Datasheet PDF )

157-OACLA00101000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.1

Max. Pass Band Frequency (GHz)

18

Gain (dB)

32

NF (dB)

2.5

P1dB (dBm)

26

IP3 (dBm)

32

VSWR

1.6

"Voltage (VDC)"

110-220V

"Current (mA)"

320

Connection Type

SMA
