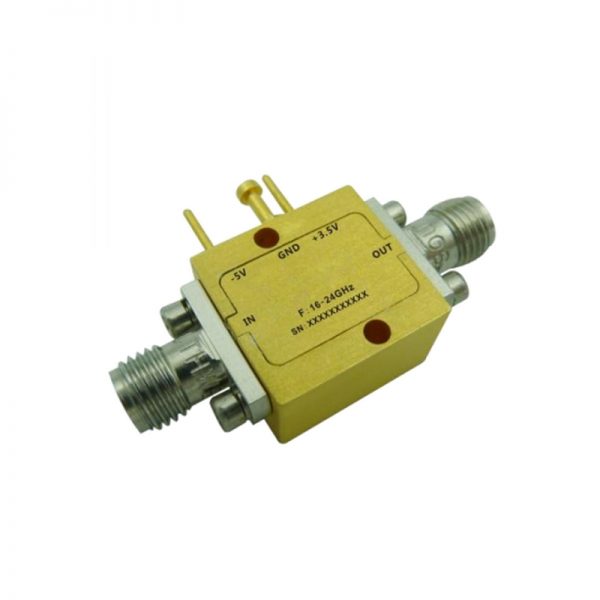

Ultra Wide Band Low Noise Amplifier From 16GHz to 24GHz With a Nominal 23dB Gain NF 1.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 16GHz to 24GHz With a Nominal 23dB Gain NF 1.8dB SMA Connectors

0 out of 5

• Gain: 23dB Typical
• Noise Figure: 1.8dB Typical
• P1dB Output Power: +18dBm Typical
• Supply Voltage: +3.5V,-5V

SKU: OLNA116002400A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 23dB Typical
• Noise Figure: 1.8dB Typical
• P1dB Output Power: +18dBm Typical
• Supply Voltage: +3.5V,-5V



Data Sheet ( Download Datasheet PDF )

173-OLNA116002400A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

16

Max. Pass Band Frequency (GHz)

24

Gain (dB)

23

NF (dB)

1.8

P1dB (dBm)

18

IP3 (dBm)

25

VSWR

2

"Voltage (VDC)"

3.5

"Current (mA)"

100

Connection Type

SMA
