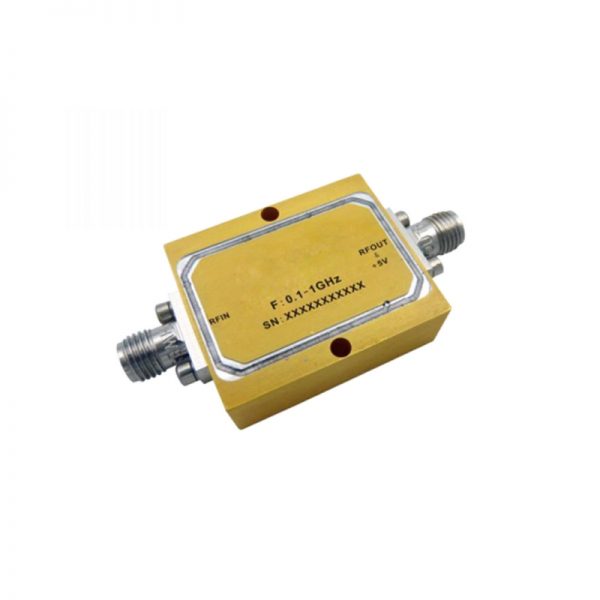

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 1GHz With a Nominal 15dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 1GHz With a Nominal 15dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain: 15dB Typical
• Functional Bandwidth : 100MHz to 4GHz
• Noise Figure: 1.0dB Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +5V @ 70mA
• 50 Ohm Matched

SKU: OLNA200100100A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 15dB Typical
• Functional Bandwidth : 100MHz to 4GHz
• Noise Figure: 1.0dB Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +5V @ 70mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

135-OLNA200100100A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.1

Max. Pass Band Frequency (GHz)

1

Gain (dB)

15

NF (dB)

2.5

P1dB (dBm)

17

IP3 (dBm)

23

VSWR

1.8

"Voltage (VDC)"

5

"Current (mA)"

70

Connection Type

SMA
