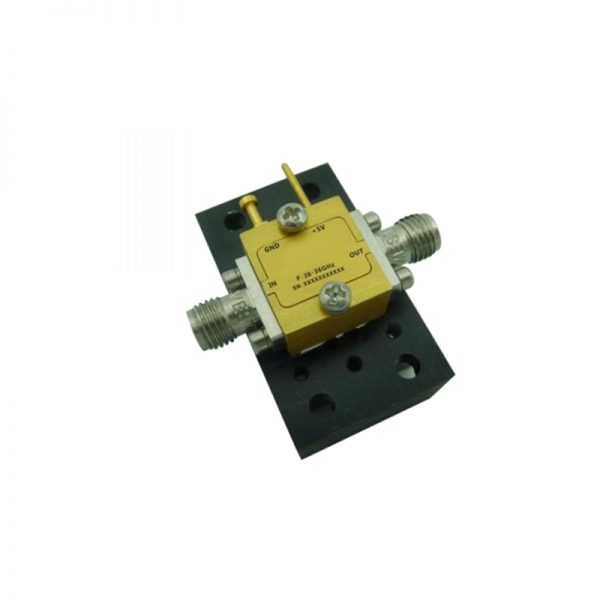

Ultra Wide Band Low Noise Amplifier From 28GHz to 36GHz With a Nominal 20dB Gain NF 2.5dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 28GHz to 36GHz With a Nominal 20dB Gain NF 2.5dB 2.92mm Connectors

0 out of 5

• Gain: 20dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +9dBm Typical
• Supply Voltage: +5V

SKU: OLNA328003600A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 20dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +9dBm Typical
• Supply Voltage: +5V



Data Sheet ( Download Datasheet PDF )

098-OLNA328003600A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

28

Max. Pass Band Frequency (GHz)

36

Gain (dB)

20

NF (dB)

2.5

P1dB (dBm)

9

IP3 (dBm)

15

VSWR

1.5

"Voltage (VDC)"

5.5

"Current (mA)"

66

Connection Type

2.92mm
