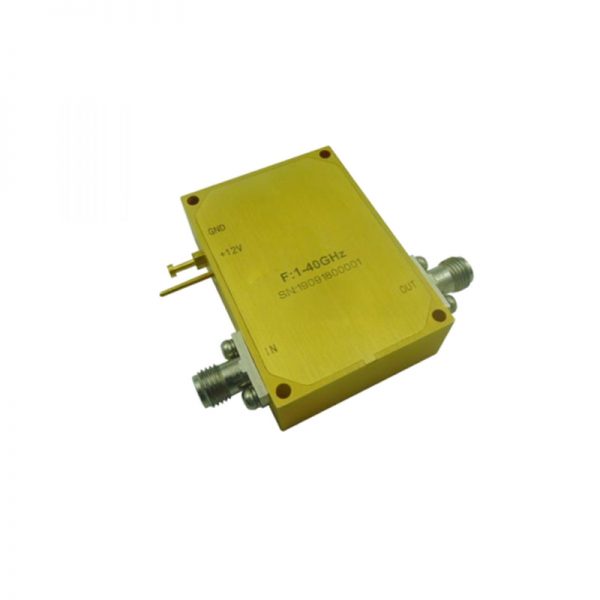

Ultra Wide Band Low Noise Amplifier From 1GHz to 40GHz With a Nominal 38dB Gain NF 5.5dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 40GHz With a Nominal 38dB Gain NF 5.5dB 2.92mm Connectors

0 out of 5

• Gain: 43dB Typical
• Noise Figure: 4.0dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V @ 500mA
• 50 Ohm Matched Input / Output
• Size: 1.26” x 1.77” x0.53”

SKU: OLNA601004000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 43dB Typical
• Noise Figure: 4.0dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V @ 500mA
• 50 Ohm Matched Input / Output
• Size: 1.26” x 1.77” x0.53”



Data Sheet ( Download Datasheet PDF )

147-OLNA601004000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

40

Gain (dB)

38

NF (dB)

5.5

P1dB (dBm)

20

IP3 (dBm)

28

VSWR

2.8

"Voltage (VDC)"

12

"Current (mA)"

500

Connection Type

2.92mm
