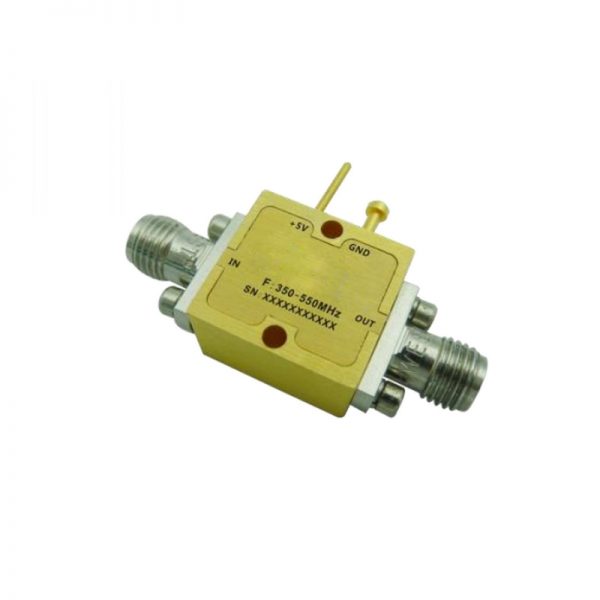

Ultra Wide Band Low Noise Amplifier From 0.33GHz to 0.55GHz With a Nominal 17dB Gain NF 1.1dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.33GHz to 0.55GHz With a Nominal 17dB Gain NF 1.1dB SMA Connectors

0 out of 5

• Gain: 17dB Typical
• Noise Figure: 1.1dB Typical
• P1dB Output Power: +20dBm
• Supply Voltage: +5V

SKU: OLNA100330055A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 17dB Typical
• Noise Figure: 1.1dB Typical
• P1dB Output Power: +20dBm
• Supply Voltage: +5V



Data Sheet ( Download Datasheet PDF )

174-OLNA100330055A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.33

Max. Pass Band Frequency (GHz)

0.55

Gain (dB)

17

NF (dB)

1.1

P1dB (dBm)

20

IP3 (dBm)

36

VSWR

1.6

"Voltage (VDC)"

5

"Current (mA)"

110

Connection Type

SMA
