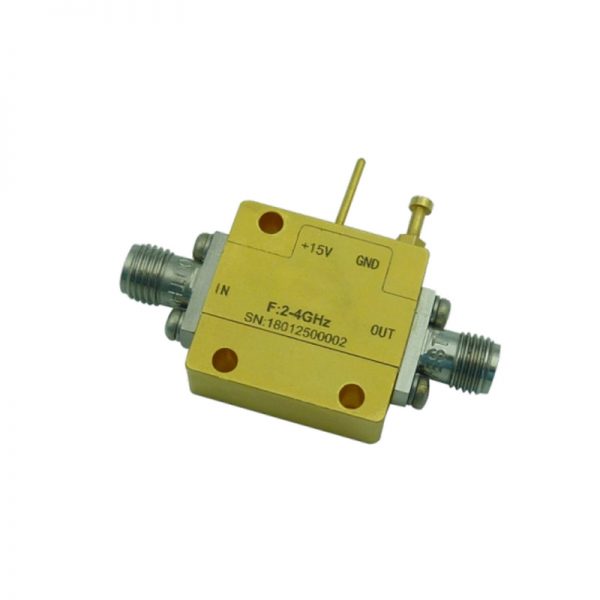

Ultra Wide Band Low Noise Amplifier From 2GHz to 4GHz With a Nominal 52dB Gain NF 0.75dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 2GHz to 4GHz With a Nominal 52dB Gain NF 0.75dB SMA Connectors

0 out of 5

• Gain: 52dB Typical
• Noise Figure: 0.75dB Typical
• P1dB Output Power: +15dBmTypical
• Supply Voltage: +15V

SKU: OLNA102000400A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 52dB Typical
• Noise Figure: 0.75dB Typical
• P1dB Output Power: +15dBmTypical
• Supply Voltage: +15V



Data Sheet ( Download Datasheet PDF )

154-OLNA102000400A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

2

Max. Pass Band Frequency (GHz)

4

Gain (dB)

52

NF (dB)

0.75

P1dB (dBm)

15

IP3 (dBm)

25

VSWR

1.6

"Voltage (VDC)"

15

"Current (mA)"

165

Connection Type

SMA
