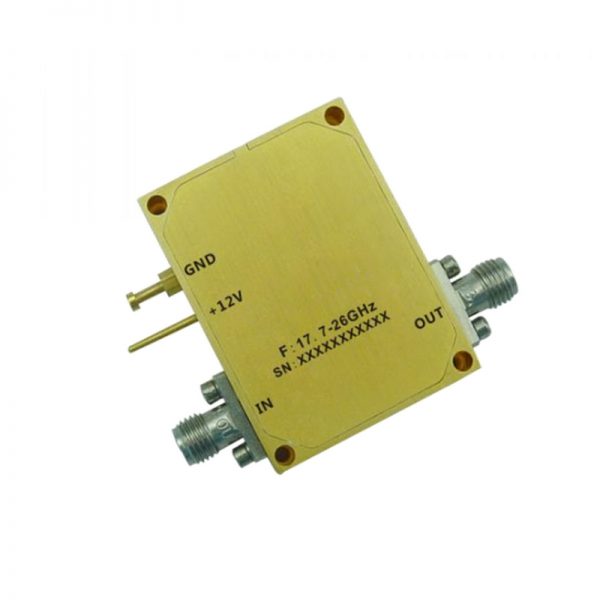

Ultra Wide Band Low Noise Amplifier From 17.7GHz to 26GHz With a Nominal 25dB Gain NF 3dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 17.7GHz to 26GHz With a Nominal 25dB Gain NF 3dB 2.92mm Connectors

0 out of 5

• Gain: 28dB Typical
• Noise Figure: 2.2dB Typical
• P1dB Output Power: +21dBmTypical
• Supply Voltage: +12V @ 160mA
• 50 Ohm Matched

SKU: OLNA217702600A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 28dB Typical
• Noise Figure: 2.2dB Typical
• P1dB Output Power: +21dBmTypical
• Supply Voltage: +12V @ 160mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

165-OLNA217702600A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

17.7

Max. Pass Band Frequency (GHz)

26

Gain (dB)

25

NF (dB)

3

P1dB (dBm)

17

IP3 (dBm)

25

VSWR

1.8

"Voltage (VDC)"

15

"Current (mA)"

160

Connection Type

2.92mm
