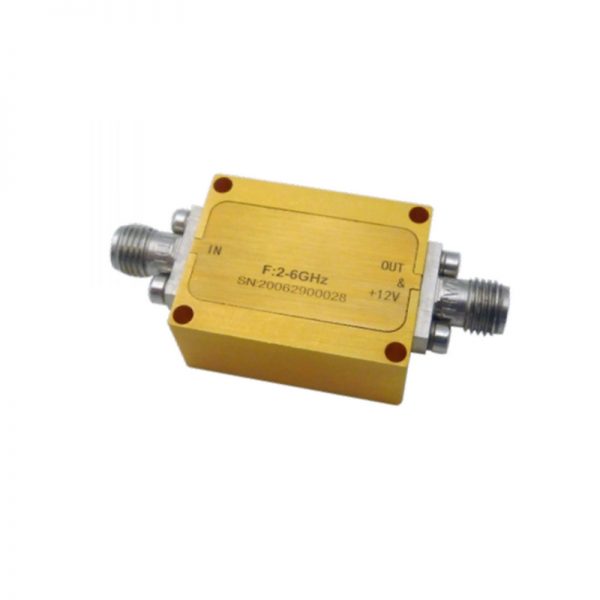

Ultra Wide Band Low Noise Amplifier From 2GHz to 6GHz With a Nominal 20dB Gain NF 1.2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 2GHz to 6GHz With a Nominal 20dB Gain NF 1.2dB SMA Connectors

0 out of 5

• Gain: 20dB Typical
• Noise Figure: 1dB Typical
• P1dB Output Power: 15dBm Typical
• Psat Output power 10dBm Typical
• Supply Voltage: +12V @ 150mA
• 50 Ohm Matched Input / Output
• Size: 1.02” x 0.79” x0.47”

SKU: OLNA202000600A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 20dB Typical
• Noise Figure: 1dB Typical
• P1dB Output Power: 15dBm Typical
• Psat Output power 10dBm Typical
• Supply Voltage: +12V @ 150mA
• 50 Ohm Matched Input / Output
• Size: 1.02” x 0.79” x0.47”



Data Sheet ( Download Datasheet PDF )

122-OLNA202000600A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

2

Max. Pass Band Frequency (GHz)

6

Gain (dB)

20

NF (dB)

1.2

P1dB (dBm)

15

IP3 (dBm)

28

VSWR

1.6

"Voltage (VDC)"

14

"Current (mA)"

120

Connection Type

SMA
