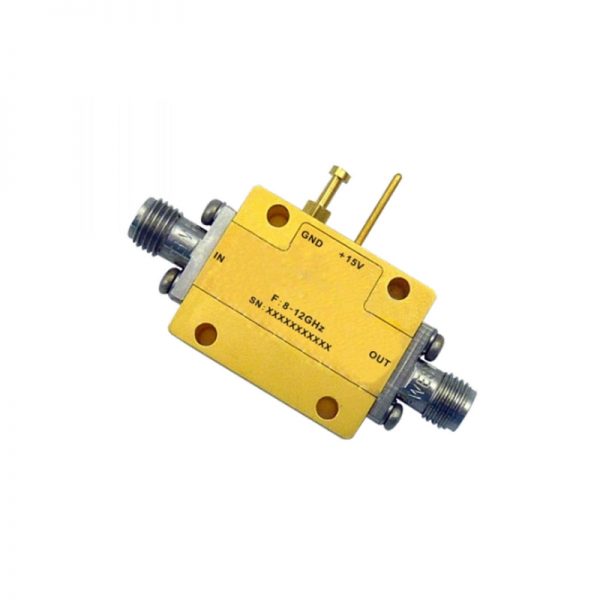

Ultra Wide Band Low Noise Amplifier From 8GHz to 12GHz With a Nominal 51dB Gain NF 1.3dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 8GHz to 12GHz With a Nominal 51dB Gain NF 1.3dB SMA Connectors

0 out of 5

• Gain: 55dB Typical
• Noise Figure: 1.1dB Typical
• P1dB Output Power: +17dBm Typical
• Supply Voltage: +15V
• 50 Ohm Matched

SKU: OLNA108001200A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 55dB Typical
• Noise Figure: 1.1dB Typical
• P1dB Output Power: +17dBm Typical
• Supply Voltage: +15V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

146-OLNA108001200A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

8

Max. Pass Band Frequency (GHz)

12

Gain (dB)

51

NF (dB)

1.3

P1dB (dBm)

14

IP3 (dBm)

25

VSWR

1.6

"Voltage (VDC)"

12

"Current (mA)"

165

Connection Type

SMA
