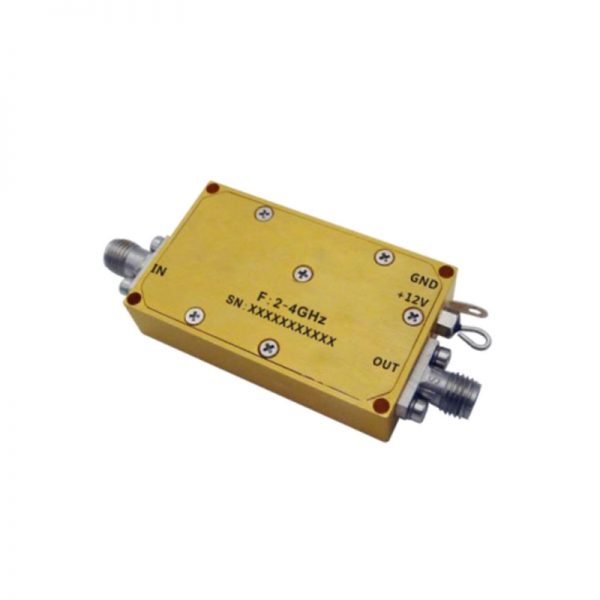

Ultra Wide Band Low Noise Amplifier From 2GHz to 4GHz With a Nominal 44dB Gain NF 1.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 2GHz to 4GHz With a Nominal 44dB Gain NF 1.8dB SMA Connectors

• Gain: 44dB Typical
• Noise Figure: 1.8dB Typical
• P1dB Output Power: +24dBm
• Supply Voltage: +12V

SKU: OLNA302000400H Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 44dB Typical
• Noise Figure: 1.8dB Typical
• P1dB Output Power: +24dBm
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

070-OLNA302000400H



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

2

Max. Pass Band Frequency (GHz)

4

Gain (dB)

44

NF (dB)

1.8

P1dB (dBm)

24

IP3 (dBm)

31

VSWR

1.5

"Voltage (VDC)"

12

"Current (mA)"

220

Connection Type

SMA
