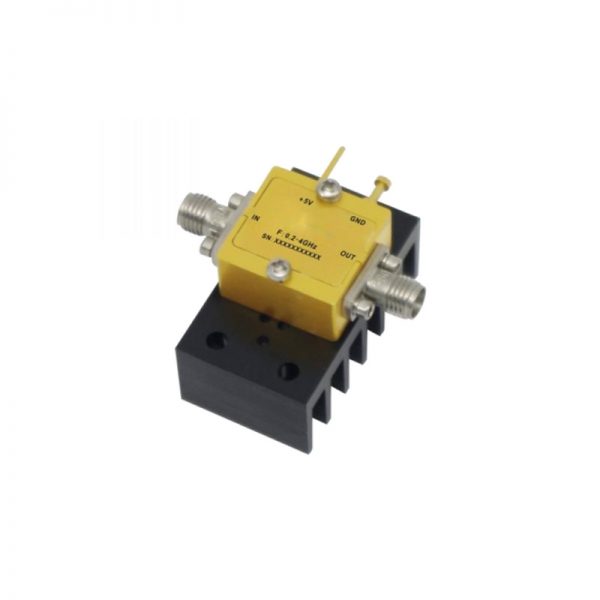

Ultra Wide Band Low Noise Amplifier From 0.2GHz to 4GHz With a Nominal 13dB Gain NF 2.3dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.2GHz to 4GHz With a Nominal 13dB Gain NF 2.3dB SMA Connectors

0 out of 5

• Gain:13dB Typical
• Noise Figure:2.5dB Typical
• P1dB Output Power: +21dBmTypical
• Supply Voltage: +5V
• 50 Ohm Matched

SKU: OLNA200200400A Categories: Low Noise Amplifier, Routing

Description

Key Specifications

• Gain:13dB Typical
• Noise Figure:2.5dB Typical
• P1dB Output Power: +21dBmTypical
• Supply Voltage: +5V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

094-OLNA200200400A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.2

Max. Pass Band Frequency (GHz)

4

Gain (dB)

13

NF (dB)

2.3

P1dB (dBm)

22

IP3 (dBm)

38

VSWR

1.5

"Voltage (VDC)"

5

"Current (mA)"

110

Connection Type

SMA
