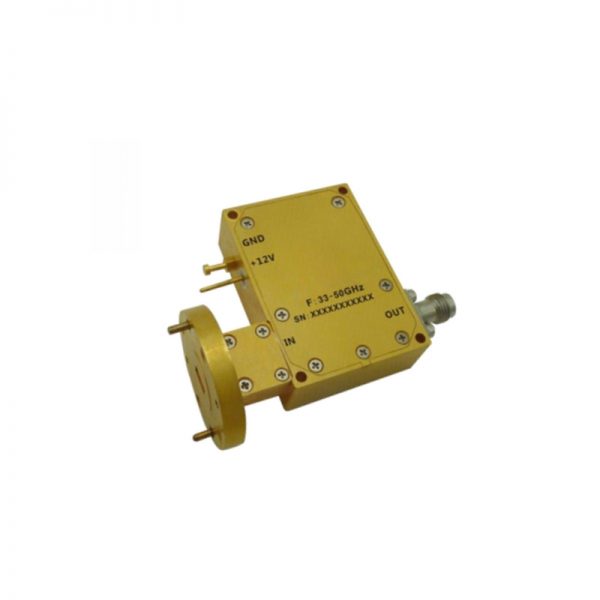

Ultra Wide Band Low Noise Amplifier From 33GHz to 50GHz With a Nominal 48dB Gain NF 2.5dB WR22/2.4mm Connectors

Ultra Wide Band Low Noise Amplifier From 33GHz to 50GHz With a Nominal 48dB Gain NF 2.5dB WR22/2.4mm Connectors

0 out of 5

• Gain: 52dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +18dBm Typical
• Supply Voltage: +12V
• 50Ohm Matched

SKU: OLNA333005000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 52dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +18dBm Typical
• Supply Voltage: +12V
• 50Ohm Matched



Data Sheet ( Download Datasheet PDF )

219-OLNA333005000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

33

Max. Pass Band Frequency (GHz)

50

Gain (dB)

48

NF (dB)

2.5

P1dB (dBm)

15

IP3 (dBm)

22

"Voltage (VDC)"

12

"Current (mA)"

300

Connection Type

WR22/2.4mm
