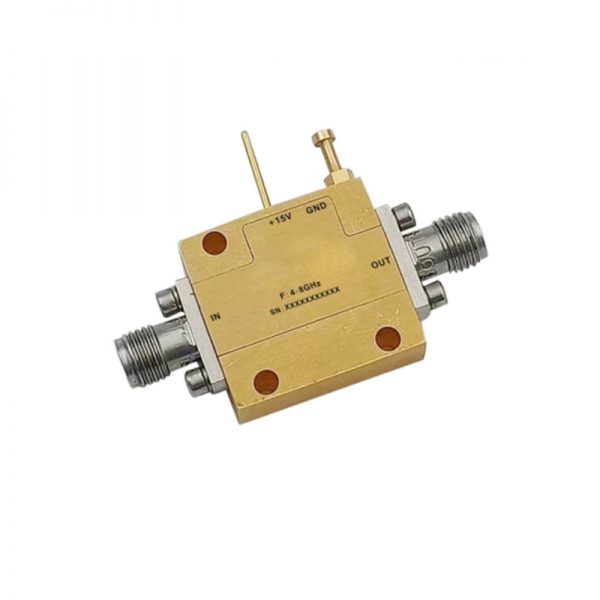

Ultra Wide Band Low Noise Amplifier From 4GHz to 8GHz With a Nominal 48dB Gain NF 1dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 4GHz to 8GHz With a Nominal 48dB Gain NF 1dB SMA Connectors

0 out of 5

• Gain: 48dB Typical
• Noise Figure: 1.0dB Typical
• P1dB Output Power: +15dBm Typical
• Supply Voltage: +15V
• 50 Ohm Matched

SKU: OLNA104000800A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 48dB Typical
• Noise Figure: 1.0dB Typical
• P1dB Output Power: +15dBm Typical
• Supply Voltage: +15V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

151-OLNA104000800A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

4

Max. Pass Band Frequency (GHz)

8

Gain (dB)

48

NF (dB)

1

P1dB (dBm)

15

IP3 (dBm)

25

VSWR

1.8

"Voltage (VDC)"

15

"Current (mA)"

165

Connection Type

SMA
