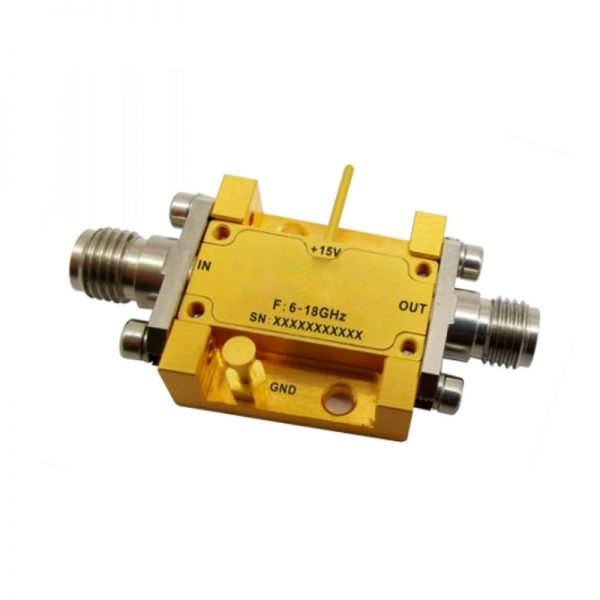

Ultra Wide Band Low Noise Amplifier From 6GHz to 18GHz With a Nominal 50dB Gain NF 1.5dB SMA-F Connectors

Ultra Wide Band Low Noise Amplifier From 6GHz to 18GHz With a Nominal 50dB Gain NF 1.5dB SMA-F Connectors

0 out of 5

• Gain: 55dB Typical
• Noise Figure: 1.5dB Typical
• P1dB Output Power: +14dBmTypical
• Supply Voltage: +15V
• Drop in Package

SKU: OLNA206001800E Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 55dB Typical
• Noise Figure: 1.5dB Typical
• P1dB Output Power: +14dBmTypical
• Supply Voltage: +15V
• Drop in Package



Data Sheet ( Download Datasheet PDF )

207-OLNA206001800E



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

6

Max. Pass Band Frequency (GHz)

18

Gain (dB)

50

NF (dB)

1.5

P1dB (dBm)

14

IP3 (dBm)

20

VSWR

1.8

"Voltage (VDC)"

15

"Current (mA)"

165

Connection Type

SMA-F
