Voltage Control Phase Shifter 0.138GHz – 0.186GHz . OVCPS00100017A

HOT

Voltage Control Phase Shifter 0.138GHz – 0.186GHz . OVCPS00100017A

RFECHO Voltage Control Phase Shifter from 0.138GHz to 0.186GHz 。 Rf echo voltage control phase shifter has the characteristics of low insertion loss and low phase error, single control operation and so on. As an application, it is widely used in radar systems, missile attitude control, accelerators, communication systems, instruments and meters, etc.

SKU: OVCPS00100017A Categories: Active Device, Phase Shifter

Description



PDF

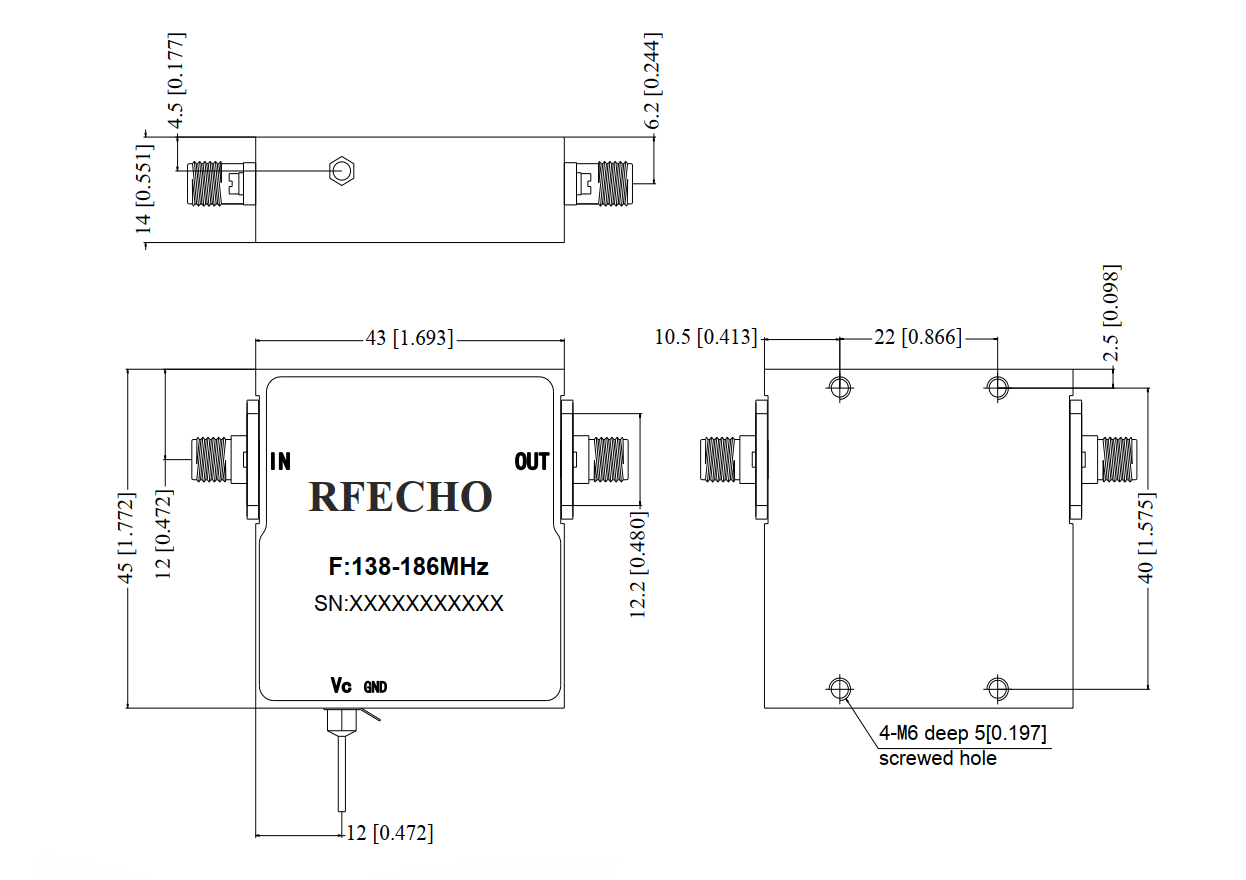

Outline

Text

















Additional information

Min. Frequency (GHz)

0.138

Max. Frequency (GHz)

0.186

Phase Range (deg)

180

Phase Accuracy (deg)

±15

Insertion Loss (dB)

1.3

VSWR

2

Average Power(W)

1
