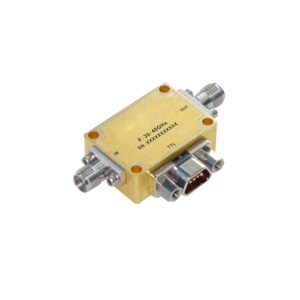

Voltage Control Phase Shifter 30GHz – 40GHz . ODP0130004000A
RFECHO Voltage Control Phase Shifter from 30GHz to 40GHz 。 Rf echo voltage control phase shifter has the characteristics of low insertion loss and low phase error, single control operation and so on. As an application, it is widely used in radar systems, missile attitude control, accelerators, communication systems, instruments and meters, etc.
- Description
- Additional information
- Reviews (0)
Additional information
| Min. Frequency (GHz) | 30 |
|---|---|
| Max. Frequency (GHz) | 40 |
| Phase Range (deg) | 180 |
| Phase Accuracy (deg) | ±4 |
| Insertion Loss (dB) | 5.5 |
| VSWR | 2 |
| Average Power(W) | 0.1 |
