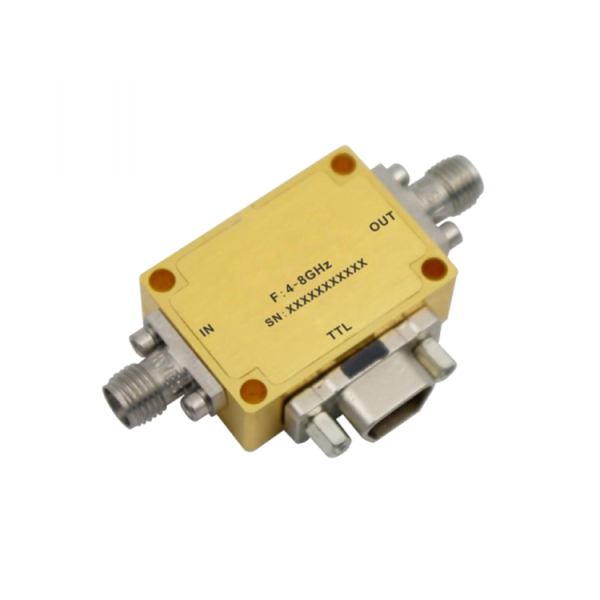

Voltage Control Phase Shifter 4GHz – 8GHz . ODP0604000800A

RFECHO Voltage Control Phase Shifter from 4GHz to 8GHz 。 Rf echo voltage control phase shifter has the characteristics of low insertion loss and low phase error, single control operation and so on. As an application, it is widely used in radar systems, missile attitude control, accelerators, communication systems, instruments and meters, etc.

SKU: ODP0604000800A Categories: Active Device, Phase Shifter

Description



Additional information

Min. Frequency (GHz)

4

Max. Frequency (GHz)

8

Phase Range (deg)

360

Phase Accuracy (deg)

±15

Insertion Loss (dB)

6

VSWR

2

Average Power(W)

0.5
