0.04 GHz to 0.042 GHz, 1.5 dB Insertion Loss, 16.0 dB Isolation, Coaxial Series Circulators OH6A038-40-42
Coaxial integrated design
Frequency range: 40-42 MHz
High isolation of 16 dB
N-Female connector interface
CW direction operation
- Description
- Datasheet

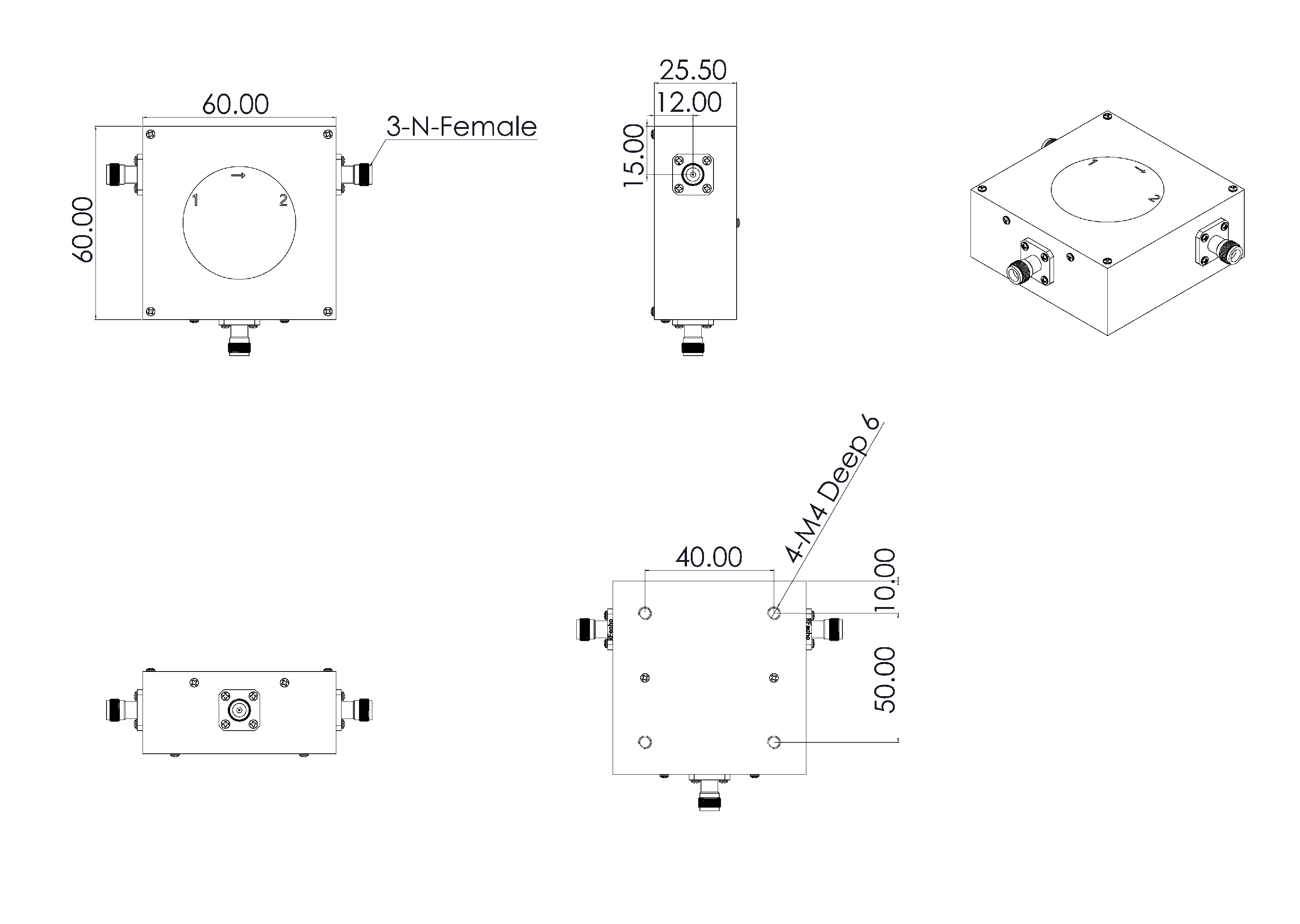

- Outline
- Reviews (0)
Description
The product named OH6A038 is high-performance coaxial integrated ring circulator designed for low-frequency RF applications, providing robust signal isolation and low insertion loss in a compact package.
OH6A038-40-42 | |
| 0.04 GHz to 0.042 GHz, 1.5 dB Insertion Loss, 16.0 dB Isolation, Coaxial Series Circulators OH6A038-40-42 | |
Property | Value |
| Frequency (MHz) | 40-42 |
| Return Loss (dB) | 18 |
| Isolation (dB) | 16 |
| Insertion Loss (dB) | 1.5 |
| IMD3 (dBc) | 20 |
| Power (W) | 50 |
| Power note | CW/CCW |
Features | |
| Coaxial integrated design | |
| Frequency range: 40-42 MHz | |
| High isolation of 16 dB | |
| N-Female connector interface | |
| CW direction operation | |
Applications | |
| For integrated RF systems. | |
