0.055 GHz to 0.065 GHz, 1.0 dB Insertion Loss, 16.0 dB Isolation, Coaxial Series Circulators OH6A037-55-65
Coaxial integrated design
Frequency range: 55-65 MHz
Low insertion loss of 1.0 dB
High isolation performance
Clockwise signal direction
- Description
- Datasheet

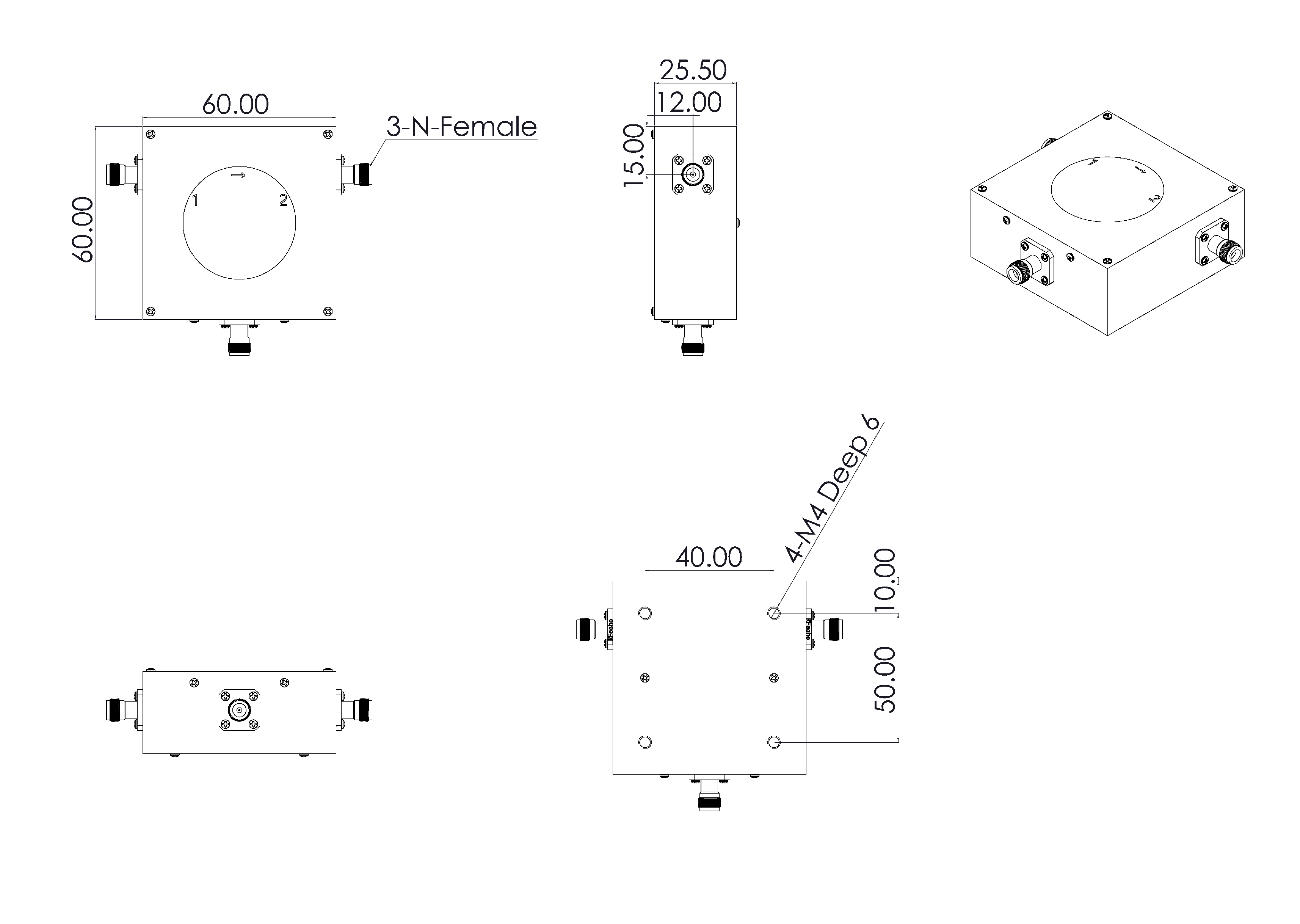

- Outline
- Reviews (0)
Description
The product named OH6A037 is high-performance coaxial integrated ring circulator, optimized for the 55-65 MHz frequency band with superior power handling and signal integrity for integrated RF systems.
OH6A037-55-65 | |
| 0.055 GHz to 0.065 GHz, 1.0 dB Insertion Loss, 16.0 dB Isolation, Coaxial Series Circulators OH6A037-55-65 | |
Property | Value |
| Frequency (MHz) | 55-65 |
| Return Loss (dB) | 18 |
| Isolation (dB) | 16 |
| Insertion Loss (dB) | 1 |
| IMD3 (dBc) | 20 |
| Power (W) | 50 |
| Power note | CW/CCW |
Features | |
| Coaxial integrated design | |
| Frequency range: 55-65 MHz | |
| Low insertion loss of 1.0 dB | |
| High isolation performance | |
| Clockwise signal direction | |
Applications | |
| For integrated RF systems. | |
