SMA connectors, 0° power divider
Series covers 0.5-18GHz range
Small size, low loss, low VSWR, high isolation
High consistency and quality due to batch production control
Suitable for large-volume requirements
Applications: Electronic warfare, navigation, test and measurement, communication systems
Standard product, customization available

SKU: OPD-A0230 Category: 2 Way RF Power Divider
Add to Wishlist

Description

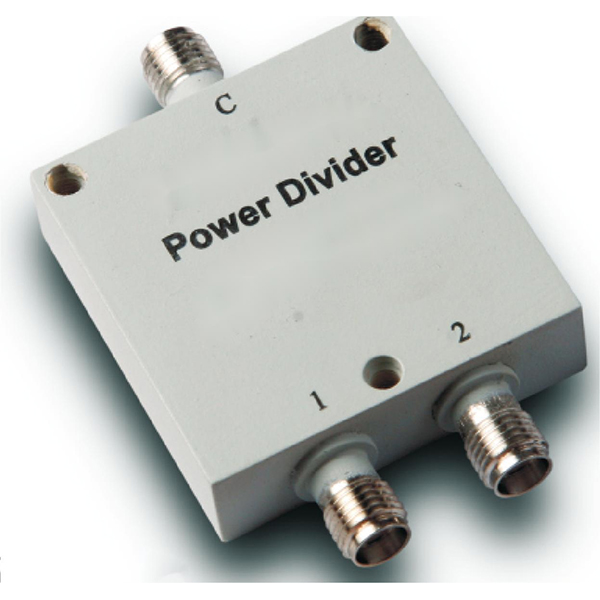

The A-series power dividers are 0° power dividers featuringSMA connectors and covering the 0.5-18GHz range. Theyare characterized by their compact size, low insertion loss,low VSWR, and high isolation. Manufactured using batchproduction control methods, these products offer high quality and consistency, meeting large-volume delivery demands.The OPD-A0230 is specifically designed for use in electronicwarfare, navigation, test and measurement, and communication systems for the distribution and combination of 2-waymicrowave signals. This is a standard product; custom designs and other catalog products are also available.

OPD-A0230

0.5-1GHz Insertion Loss 0.35dB SMA Connector 0° Power Divider


Property

Value

Frequency Range

0.5-1GHz

Insertion Loss

0.35dB

Isolation

20dB

Power Handling

30W

Connector

SMA-F

Amplitude Balance

±0.20dB

Phase Balance

±2°

Operating Temperature

-55~+85°C

Storage Temperature

-55~+100°C

Input VSWR

1.2

Output VSWR

1.15

Compliance

Meets ‘GJB-1509-1992’ test items and requirements

Features

SMA connectors, 0° power divider

Series covers 0.5-18GHz range

Small size, low loss, low VSWR, high isolation

High consistency and quality due to batch production control

Suitable for large-volume requirements

Applications: Electronic warfare, navigation, test and measurement, communication systems

Standard product, customization available

Applications

Electronic Countermeasures, Testing and Measurement

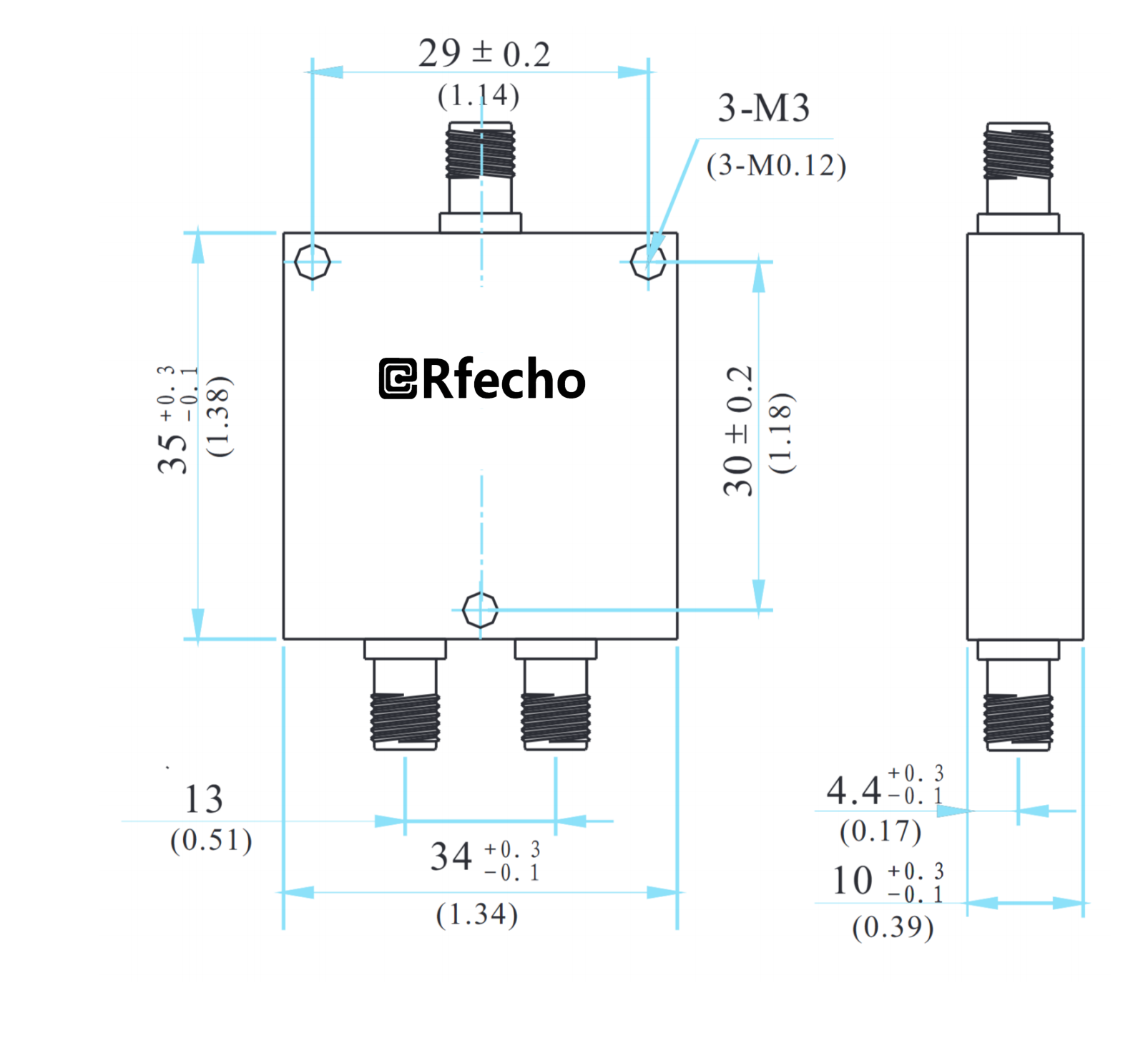

0.5-1GHz Insertion Loss 0.35dB SMA Connector 0° Power Divider-Outline
