0.869 GHz to 0.894 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, Drop-in Series Circulators OHYH535A-869-894
Embedded stripline design
High isolation performance
Low insertion loss
High power handling capability
Wide operating temperature range
- Description
- Datasheet

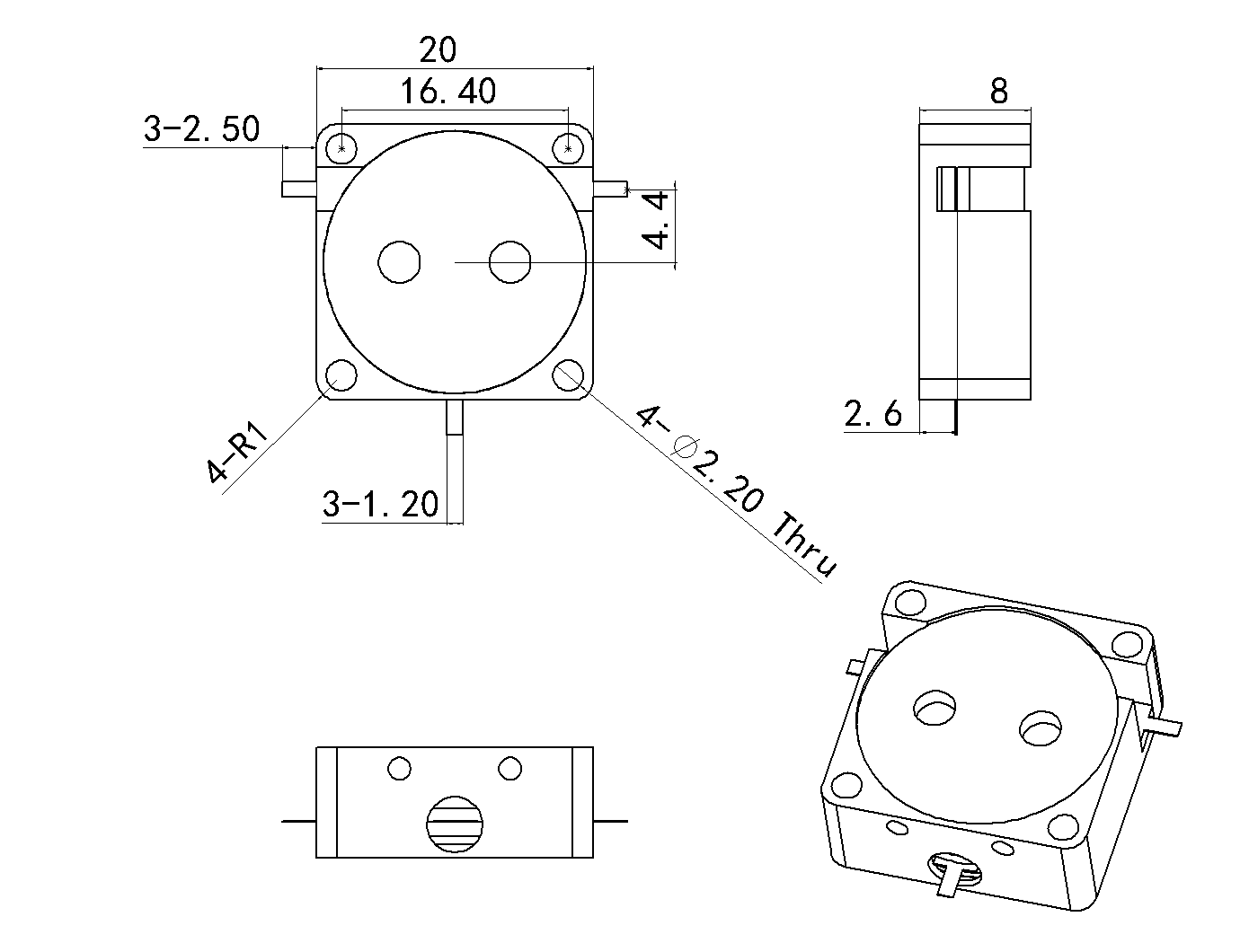

- Outline
- Reviews (0)
Description
The product named OHYH535A-869-894 is high-performance stripline embedded circulator designed for telecommunications and microwave applications, offering stable isolation and low insertion loss across its operating range.
OHYH535A-869-894 | |
| 0.869 GHz to 0.894 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, Drop-in Series Circulators OHYH535A-869-894 | |
Property | Value |
| Frequency (MHz) | 869-894 |
| Return Loss (dB) | 22 |
| Isolation (dB) | 22 |
| Insertion Loss (dB) | 0.25 |
| IMD3 (dBc) | -65 |
| Power (W) | 2 |
| Operating Temp ( degC) | 30 to 160 |
Features | |
| Embedded stripline design | |
| High isolation performance | |
| Low insertion loss | |
| High power handling capability | |
| Wide operating temperature range | |
Applications | |
| Designed for telecommunications applications, featuring robust performance and reliable signal isolation. | |
