1.0mm 110 GHz, 0.009″ Accept Pin Diameter, 2 Hole 0.400″ Long Mounting Flange Male Connector

1.0mm 110 GHz, 0.009″ Accept Pin Diameter, 2 Hole 0.400″ Long Mounting Flange Male Connector

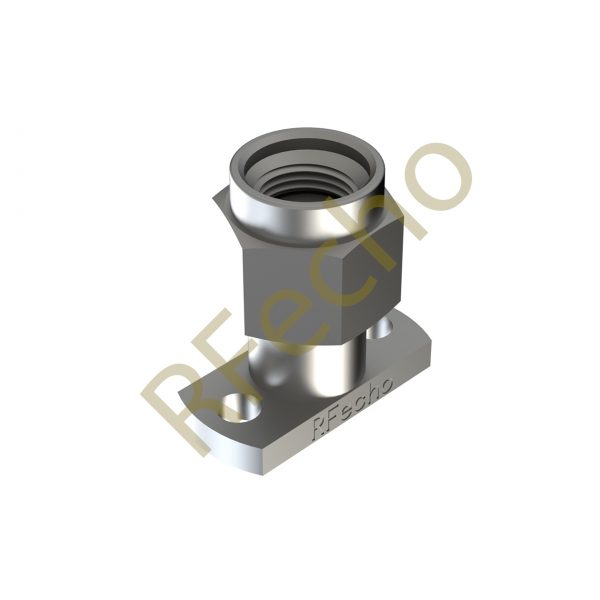

This Model D101-P09-F10 is a Male connector. 1.0mm connector is rugged and durable, featuring a 360° raised grounding ring and operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, and the industry’s lowest VSWR 1.2:1, insertion loss 0.6 dB, and RF leakage ≤ -100 dB.

1.00mm (W) Connector offer the frequency range from DC to 110 GHz, with 2 Hole0.400″ Long mounting 1.00mm (W) Connector has an accept pin diameter of 0.009″inches.

Description

SPEC

1.00mm (W) Connector

1.0mm 110 GHz, 0.009″ Accept Pin Diameter, 2 Hole 0.400″ Long Mounting Flange Male Connector

D101-P09-F10

This Model D101-P09-F10 is a Male connector. 1.0mm connector is rugged and durable, featuring a 360° raised grounding ring and operational temperature rating of -55°C to +165°C, offering well-matched impedance, excellent repeatability, and the industry’s lowest VSWR 1.2:1, insertion loss 0.6 dB, and RF leakage ≤ -100 dB.

1.00mm (W) Connector offer the frequency range from DC to 110 GHz, with 2 Hole0.400″ Long mounting 1.00mm (W) Connector has an accept pin diameter of 0.009″inches.

Property

Value

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

110

Flange (inch)

0.400″ Long

Mounting

2 Hole

Accept Pin Diameter (inch)

0.009″

Gender

Male

Features

Low VSWR

Free through 110 GHz

Applications

Telecom Communication

Sub-assemblies

Radio equipment and instruments

Wireless Communication

Test Labs

Instrumentations

PDF

Outline

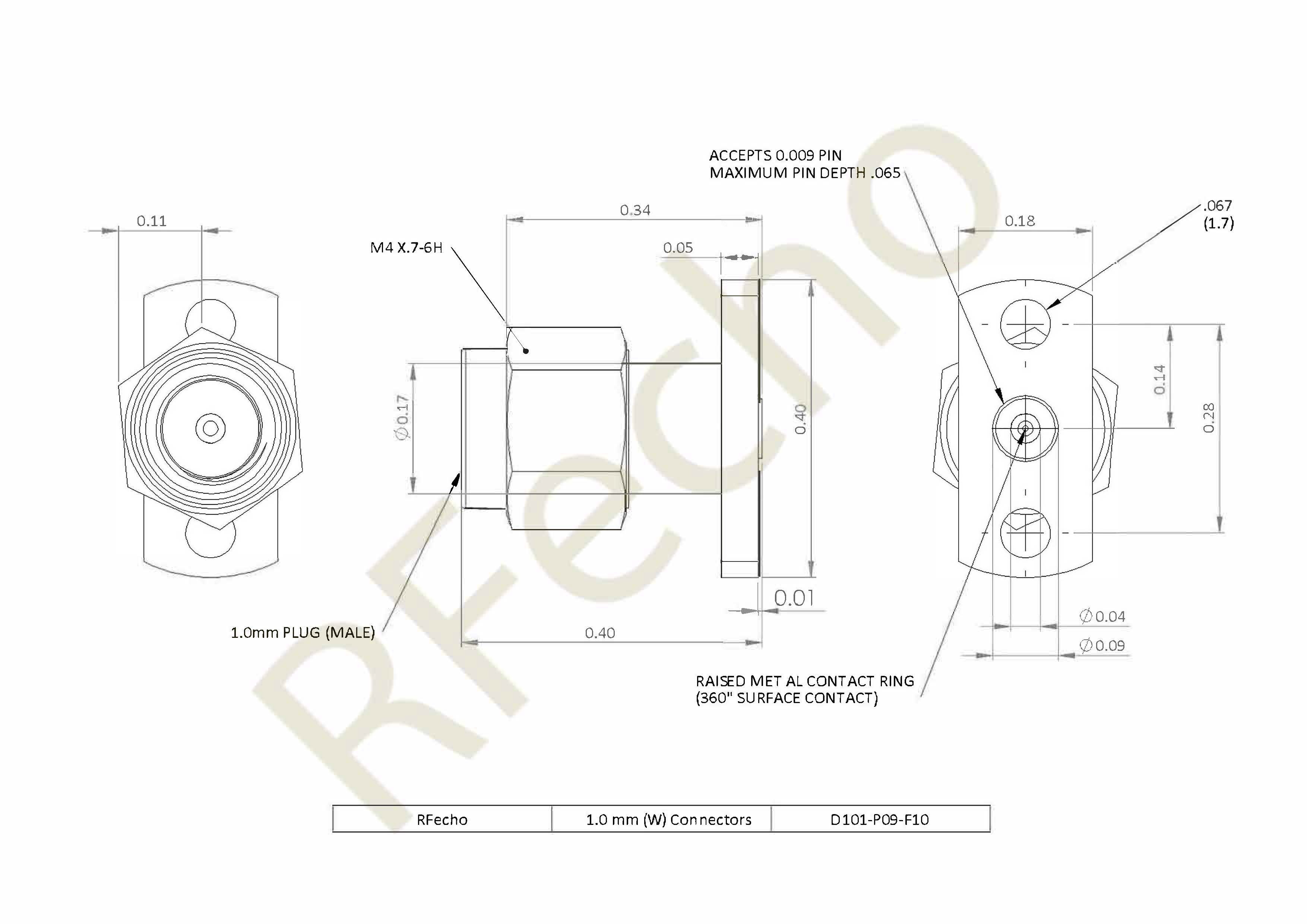

D101 P09 F10 outline 1.0mm 110 GHz, 0.009″ Accept Pin Diameter, 2 Hole 0.400″ Long Mounting Flange Male Connector

Plot

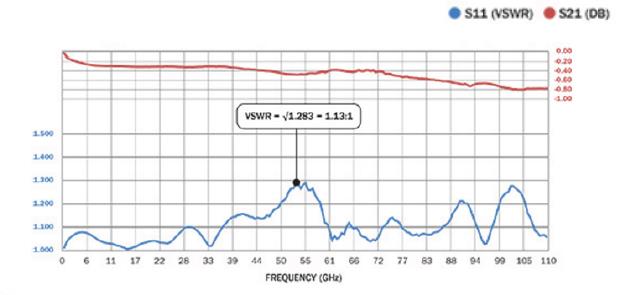

D101 P09 F10 plot1 1.0mm 110 GHz, 0.009″ Accept Pin Diameter, 2 Hole 0.400″ Long Mounting Flange Male Connector

Additional information

Min. Frequency (GHz)

DC

Max. Frequency (GHz)

110

Flange (inch)

Mounting

Accept Pin Diameter (inch)

Gender
