High Pass Passive Filter 1.2GHz to 6GHz Microwave Cavity High Pass Filter rejection ≥ 50dB @ DC~1.0GHz with SMA Female Connector

High Pass Passive Filter model OHP: 1200-6000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This High Pass Passive Filter Manufactured with a passband frequency from 1.2GHz to 6GHz and a Cut-off frequency 1.2GHz. Our Microwave Cavity High Pass Filter provides a nominal insertion loss of ≤2.0dB across its passband and a typical rejection of ≥50dB @ DC – 1.0GHz. Since the high end cutoff frequency of High Pass Passive Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Microwave Cavity High Pass Filter has Passband VSWR of ≤1.6:1 and power handling of ≤5W. High Pass Passive Filter is manufactured with SMA Female Connector and Net weight of 0.085Kg.
1.2GHz to 6GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 1.2GHz to 6GHz High Pass Passive Filter is ready for shipping worldwide after purchase. Additional specs of this Microwave Cavity High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.

SKU: OHP-1200-6000 Categories: High Pass Filter, RF Cavity Filter, RF Filters

Description

RFecho High Pass Cavity Filter (abbreviation:OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

High Pass Cavity Filter – OHP-1200-6000:

  • Cut Off Frequency: 1.2GHz,
  • Pass Band Frequency: 1.2-6GHz,
  • Pass Band Insertion Loss: 2dB,
  • Pass Band VSWR: 1.6,
  • Rejection: ≥50 dB @ DC -1.0 GHz

[/vc_column_text][/vc_tab]

Empty section. Edit page to add content here.

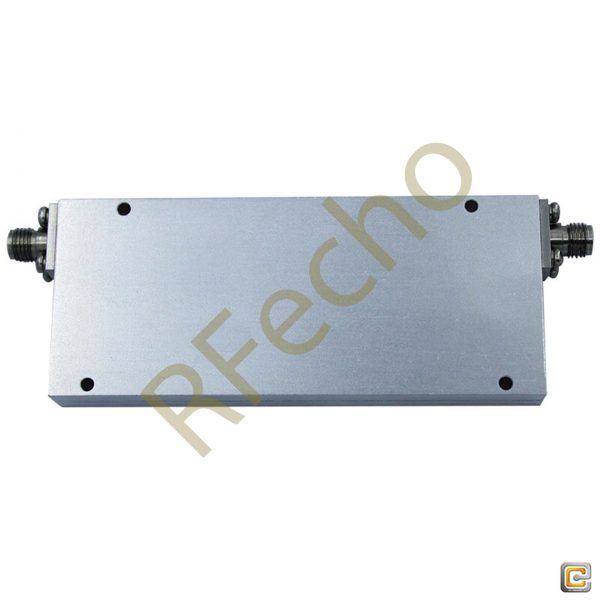

1.2 GHz to 6 GHz Rejection ≥50 dB @ DC -1.0 GHz High Pass Cavity Filter 01

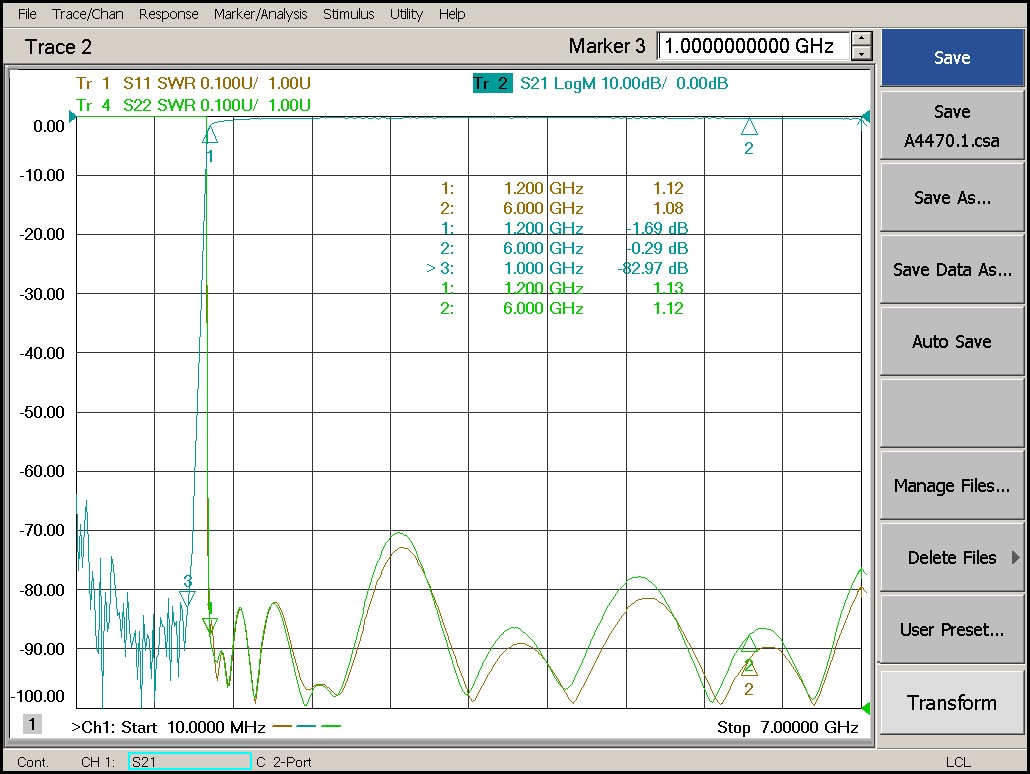

1.2 GHz to 6 GHz Rejection ≥50 dB @ DC -1.0 GHz High Pass Cavity Filter 02

[/vc_tabs]

Additional information

Weight 0.085 kg
Min. Pass Band Frequency (GHz)

1.2

Max. Pass Band Frequency (GHz)

6

Connection Type

SMA-Female

Power Handling (W)

≤15

Insertion Loss

≤2.0dB

VSWR

≤1.6:1

Rejection

≥50 dB @ DC -1.0 GHz

Impedance (Ω)

50

Surface Finish

Guided Oxygen or Black Paint
