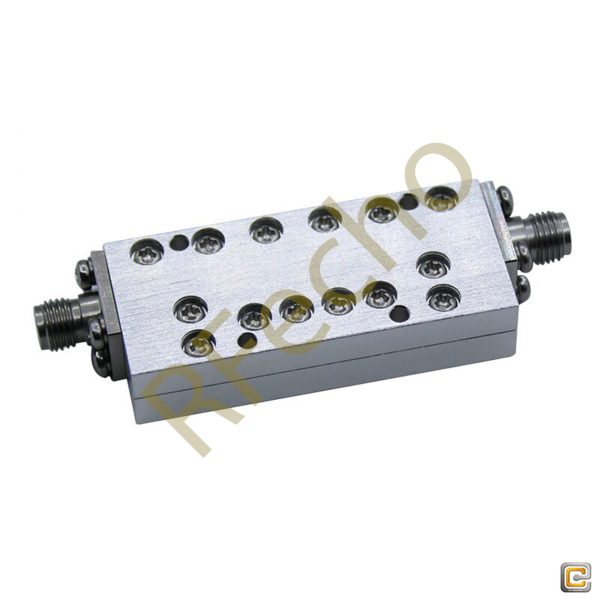

High Pass Microwave Cavity Filter 1.5GHz to 14GHz Passive RF High Pass Filter rejection ≥ 50dB @ DC~1.17GHz with SMA Female Connector
High Pass Microwave Cavity Filter model OHP: 1500-14000 also known as low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies. This High Pass Microwave Cavity Filter Manufactured with a passband frequency from 1.5GHz to 14GHz and a Cut-off frequency 1.5GHz. Our Passive RF High Pass Filter provides a nominal insertion loss of ≤1.5dB @ 1.5GHz – 1.6GHz | ≤1.0dB @ 1.6GHz – 14GHz across its passband and a typical rejection of ≥50dB @ DC – 1.17GHz. Since the high end cutoff frequency of High Pass Microwave Cavity Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Passive RF High Pass Filter has Passband VSWR of ≤1.5:1 and power handling of ≤15W. High Pass Microwave Cavity Filter is manufactured with SMA Female Connector and Net weight of 0.025Kg.
1.5GHz to 14GHz Ocean High Pass Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 1.5GHz to 14GHz High Pass Microwave Cavity Filter is ready for shipping worldwide after purchase. Additional specs of this Passive RF High Pass Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.
- Description
- Additional information
- Reviews (0)
Description
RFecho High Pass Cavity Filter (abbreviation: OHP), also known as a low cut-off filter and low resistance filter, allows frequency higher than a certain cut-off frequency to pass through and greatly attenuates lower frequencies.

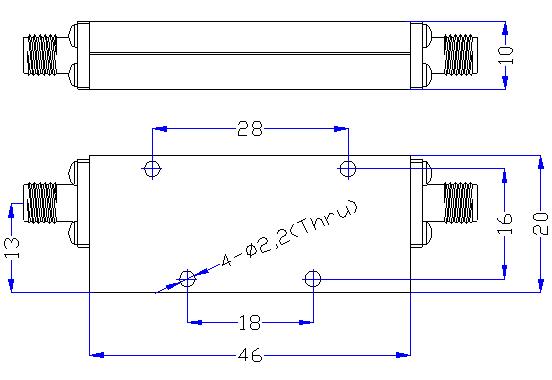

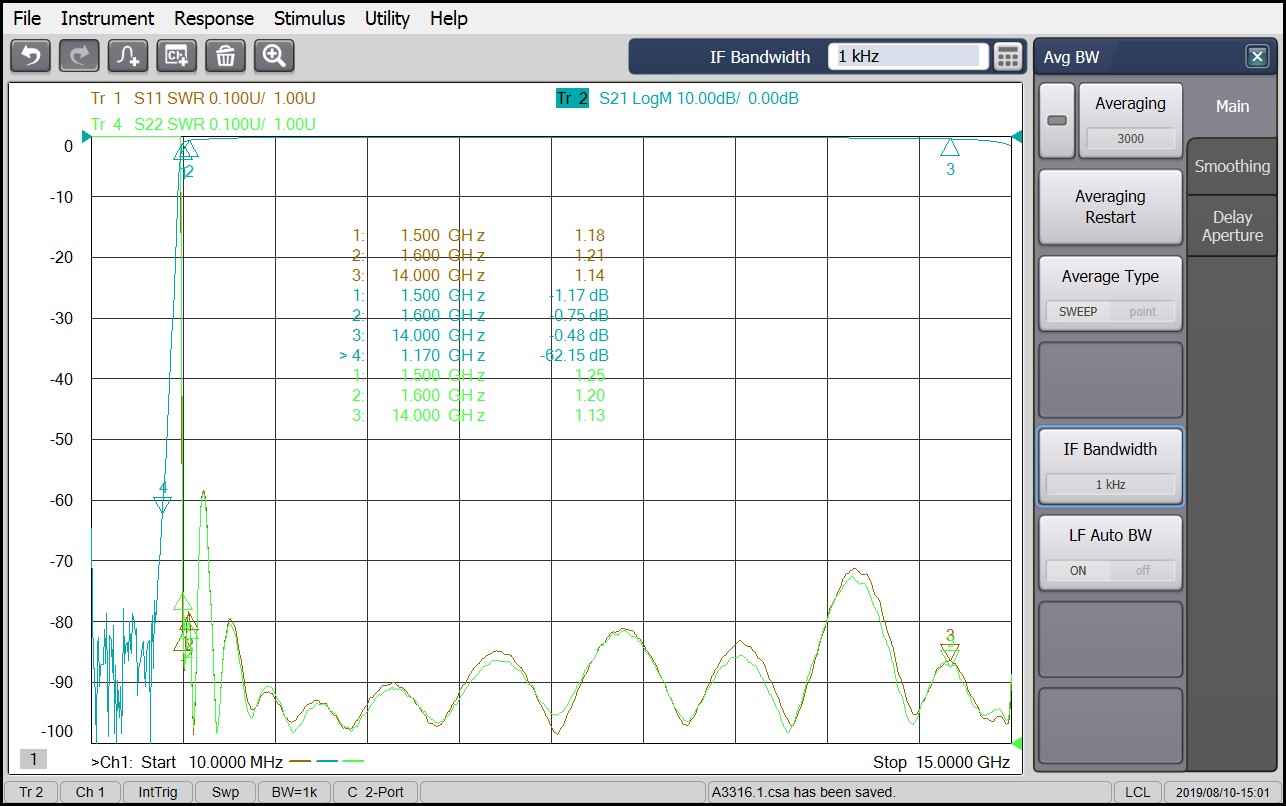

High Pass Cavity Filter – OHP-1500-14000:
- Cut Off Frequency: 1.5GHz,
- Pass Band Frequency: 1.5-14GHz,
- Pass Band Insertion Loss: 1.5dB,
- Pass Band VSWR: 1.5,
- Rejection: ≥50 dB @ DC -1.17 GHz.
Additional information
Weight | 0.025 kg |
---|---|
Min. Pass Band Frequency (GHz) | |
Max. Pass Band Frequency (GHz) | |
Connection Type | |
Power Handling (W) | |
Insertion Loss | |
VSWR | ≤1.5:1 |
Rejection | |
Impedance (Ω) | |
Surface Finish |
