1.8 GHz to 2.2 GHz, 0.3 dB Insertion Loss, 18.0 dB Isolation, SMD Series Circulators Isolator-OHYH101B-1800-2200
$0.00
Stripline design
Surface mount package
High isolation
Low insertion loss
Wide operating temperature range
- Description
- Reviews (0)
Description

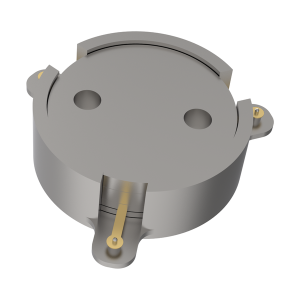

The product named OHYH101B-1800-2200 is high-performance stripline surface mount circulator designed for robust signal routing in RF communication systems, offering excellent performance across a range of technical indicators.
OHYH101B-1800-2200 |
|
|
1.8 GHz to 2.2 GHz, 0.3 dB Insertion Loss, 18.0 dB Isolation, SMD Series Circulators Isolator-OHYH101B-1800-2200 |
|
Property |
Value |
|
Frequency (MHz) |
1800-2200 |
|
Return Loss (dB) |
18 |
|
Isolation (dB) |
18 |
|
Insertion Loss (dB) |
0.3 |
|
IMD3 (dBc) |
-60 |
|
Power (W) |
2 |
|
Operating Temp ( degC) |
-40 to 120 |
Features |
|
|
Stripline design |
|
|
Surface mount package |
|
|
High isolation |
|
|
Low insertion loss |
|
|
Wide operating temperature range |
|
Applications |
|
|
Designed for robust performance in communication systems. |
|
