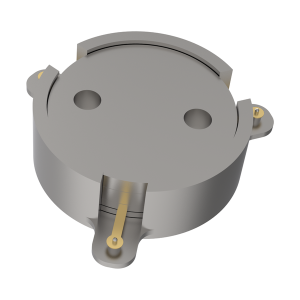

1.805 GHz to 1.88 GHz, 0.25 dB Insertion Loss, 23.0 dB Isolation, SMD Series Circulators OHYH101B-1805-1880
Stripline design
Surface mount package
High isolation
Low insertion loss
Wide operating temperature range
- Description
- Datasheet

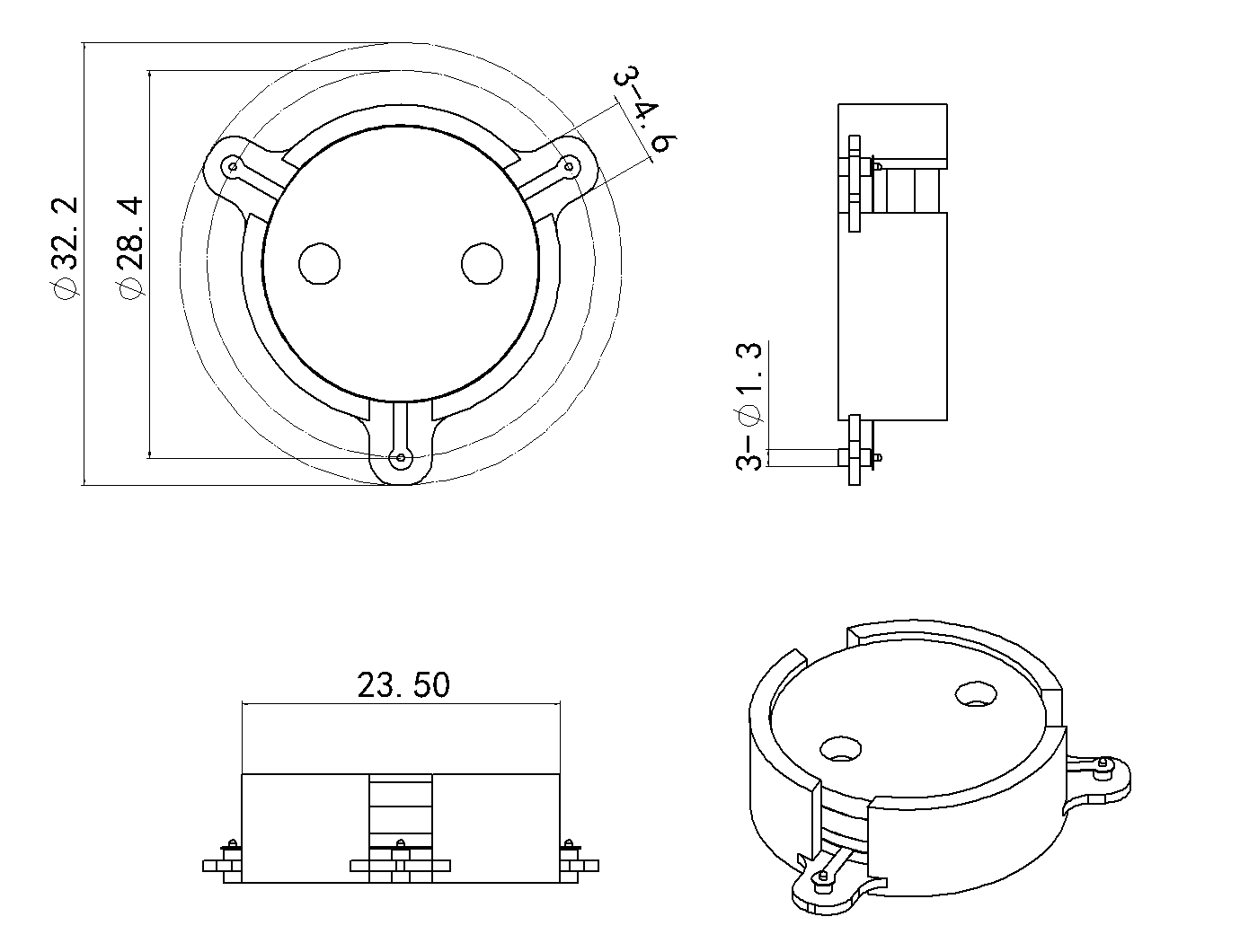

- Outline
- Reviews (0)
Description
The product named OHYH101B-1805-1880 is high-performance stripline surface mount circulator designed for robust signal routing in RF communication systems, offering excellent performance across a range of technical indicators.
OHYH101B-1805-1880 | |
| 1.805 GHz to 1.88 GHz, 0.25 dB Insertion Loss, 23.0 dB Isolation, SMD Series Circulators OHYH101B-1805-1880 | |
Property | Value |
| Frequency (MHz) | 1805-1880 |
| Return Loss (dB) | 23 |
| Isolation (dB) | 23 |
| Insertion Loss (dB) | 0.25 |
| IMD3 (dBc) | -65 |
| Power (W) | 2 |
| Operating Temp ( degC) | -40 to 120 |
Features | |
| Stripline design | |
| Surface mount package | |
| High isolation | |
| Low insertion loss | |
| Wide operating temperature range | |
Applications | |
| Designed for robust performance in communication systems. | |
