OH535A-1805-1880

Three-port drop-in circulator

1805-1880 MHz · 0.25 dB insertion loss · 22 dB isolation

20 × 20 × 8 mm · 160 W

SKU: OHYH535A-1805-1880 Categories: Circulators, Drop-In Series Circulators

Description

Technical specifications

1805-1880 MHzFrequency range
0.25 dBInsertion loss
22 dBIsolation
Frequency range
1805-1880 MHz
Insertion loss
0.25 dB
Isolation
22 dB
Return loss
22 dB
Power rating
160 W
IMD3
−65 dBc at 2 × 30 W
Operating temperature
−40 to +85 °C
Body dimensions
20 × 20 × 8 mm
Mounting holes
4 × Ø2.20 through; 16.40 mm pitch
RF tabs
3 × 1.20 mm wide; 2.50 mm extension

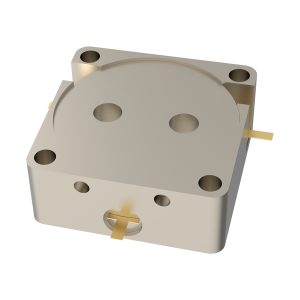

Circulator details

OH535A-1805-1880 · Three-port drop-in circulator · 1805-1880 MHz

Embedded stripline circulator with three RF tab connections, a compact 20 × 20 mm body and four mounting holes. Rated power: 160 W. IMD3 test condition: 2 × 30 W.

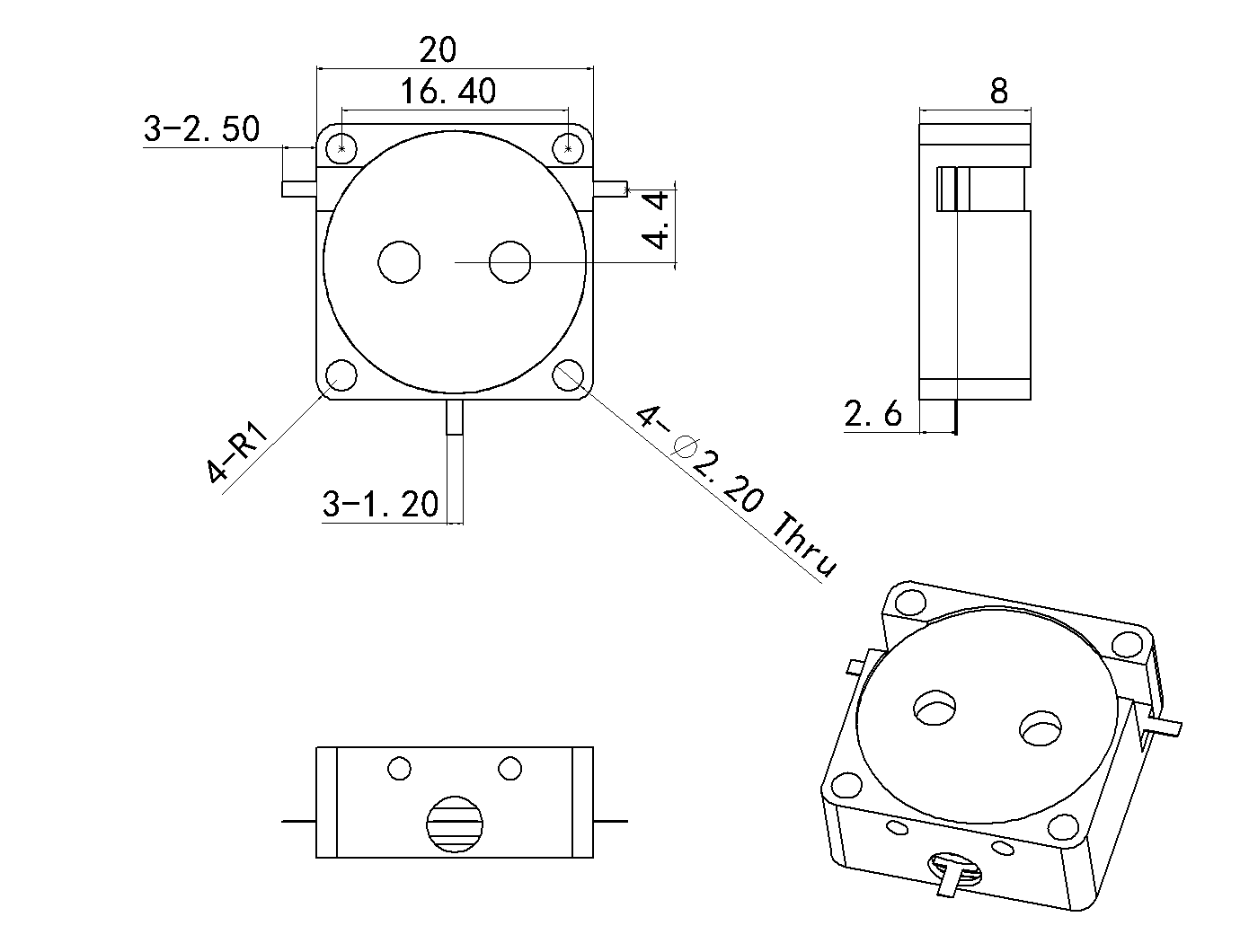

Mechanical outline

OH535A-1805-1880 mechanical outline
Top, side, front and isometric views. Dimensions in mm.

Supplier reference performance plots

HYH535A catalog reference; original markers at 1565 and 1586 MHz. These reference plots are not measurements at 1805-1880 MHz.

S11

S11 original supplier reference plot

Original supplier marker data
Frequency (MHz) Magnitude (dB)
1565 -25.952
1586 -25.809

S21

S21 original supplier reference plot

Original supplier marker data
Frequency (MHz) Magnitude (dB)
1565 -0.2396
1586 -0.2407

S22

S22 original supplier reference plot

Original supplier marker data
Frequency (MHz) Magnitude (dB)
1565 -36.329
1586 -34.842

S12

S12 original supplier reference plot

Original supplier marker data
Frequency (MHz) Magnitude (dB)
1565 -34.586
1586 -36.883

Product datasheet

Specifications, mechanical outline and supplier reference performance plots.

Download PDF datasheet
