1.805 GHz to 1.88 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators Isolator-OH107C-1805-1880
$0.00
High isolation
Low insertion loss
Compact surface mount package
Wide operating temperature range
Excellent power handling capabilities
- Description
- Reviews (0)
Description

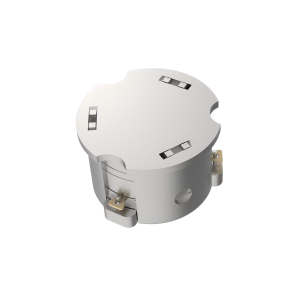

The product named OH107C-1805-1880 is high-performance stripline surface mount circulator designed for high-reliability telecommunication applications.
OH107C-1805-1880 |
|
|
1.805 GHz to 1.88 GHz, 0.3 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators Isolator-OH107C-1805-1880 |
|
Property |
Value |
|
Frequency (MHz) |
1805-1880 |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.3 |
|
IMD3 (dBc) |
-60 |
|
Power (W) |
2 |
|
Power note |
2*5W |
|
Operating Temp ( degC) |
5 to 20 |
Features |
|
|
High isolation |
|
|
Low insertion loss |
|
|
Compact surface mount package |
|
|
Wide operating temperature range |
|
|
Excellent power handling capabilities |
|
Applications |
|
|
Designed for robust performance in communication systems. |
|
