4.8 GHz to 5 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, SMD Series Circulators OH103E-4800-5000
Surface Mount Package
Broad Frequency Coverage
Low Insertion Loss
High Isolation
High Power Handling
- Description
- Datasheet

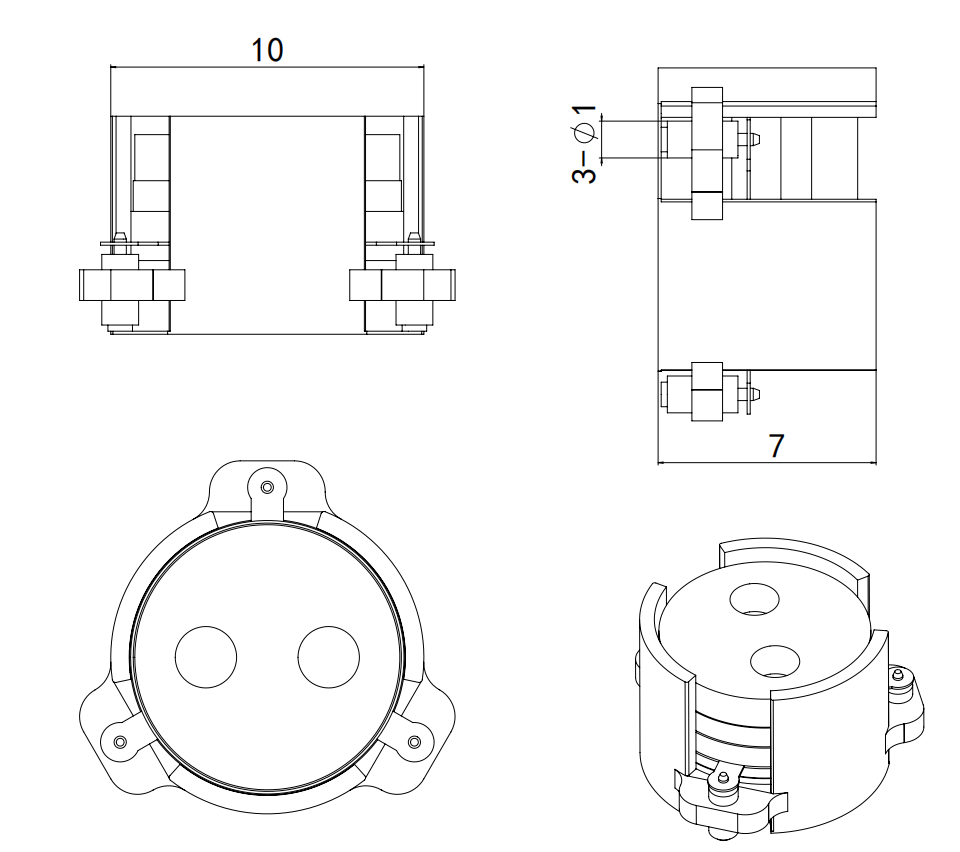

- Outline
- Reviews (0)
Description

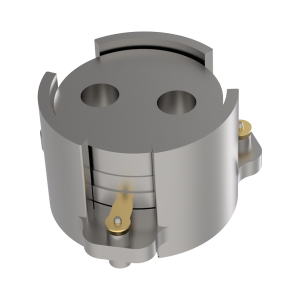

The product named OH103E-4800-5000 is high-performance stripline surface mount circulator designed for telecommunications and RF applications.
OH103E-4800-5000 | |
| 4.8 GHz to 5 GHz, 0.25 dB Insertion Loss, 22.0 dB Isolation, SMD Series Circulators OH103E-4800-5000 | |
Property | Value |
| Frequency (MHz) | 4800-5000 |
| Return Loss (dB) | 22 |
| Isolation (dB) | 22 |
| Insertion Loss (dB) | 0.25 |
| IMD3 (dBc) | -60 |
| Power (W) | 2 |
| Size | 10mm |
| Operating Temp ( degC) | -40 to 105 |
Features | |
| Surface Mount Package | |
| Broad Frequency Coverage | |
| Low Insertion Loss | |
| High Isolation | |
| High Power Handling | |
Applications | |
| Designed for robust performance in communication systems. | |
