1.805 GHz to 1.88 GHz, 0.35 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators Isolator-OH121A-1805-1880
$0.00
Stripline technology
Surface mount package
Wide frequency range coverage
High isolation
Low insertion loss
High power handling up to 50W
Wide operating temperature range (-40 degC to +125 degC)
- Description
- Reviews (0)
Description

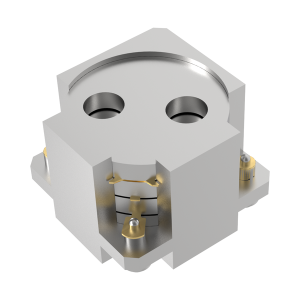

The product named OH121A-1805-1880 is high-performance surface mount circulator designed for stripline applications, offering excellent isolation and low insertion loss across its operating frequency range.
OH121A-1805-1880 |
|
|
1.805 GHz to 1.88 GHz, 0.35 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators Isolator-OH121A-1805-1880 |
|
Property |
Value |
|
Frequency (MHz) |
1805-1880 |
|
Return Loss (dB) |
20 |
|
Isolation (dB) |
20 |
|
Insertion Loss (dB) |
0.35 |
|
IMD3 (dBc) |
-60 |
|
Power (W) |
50 |
|
Power note |
2*10W |
|

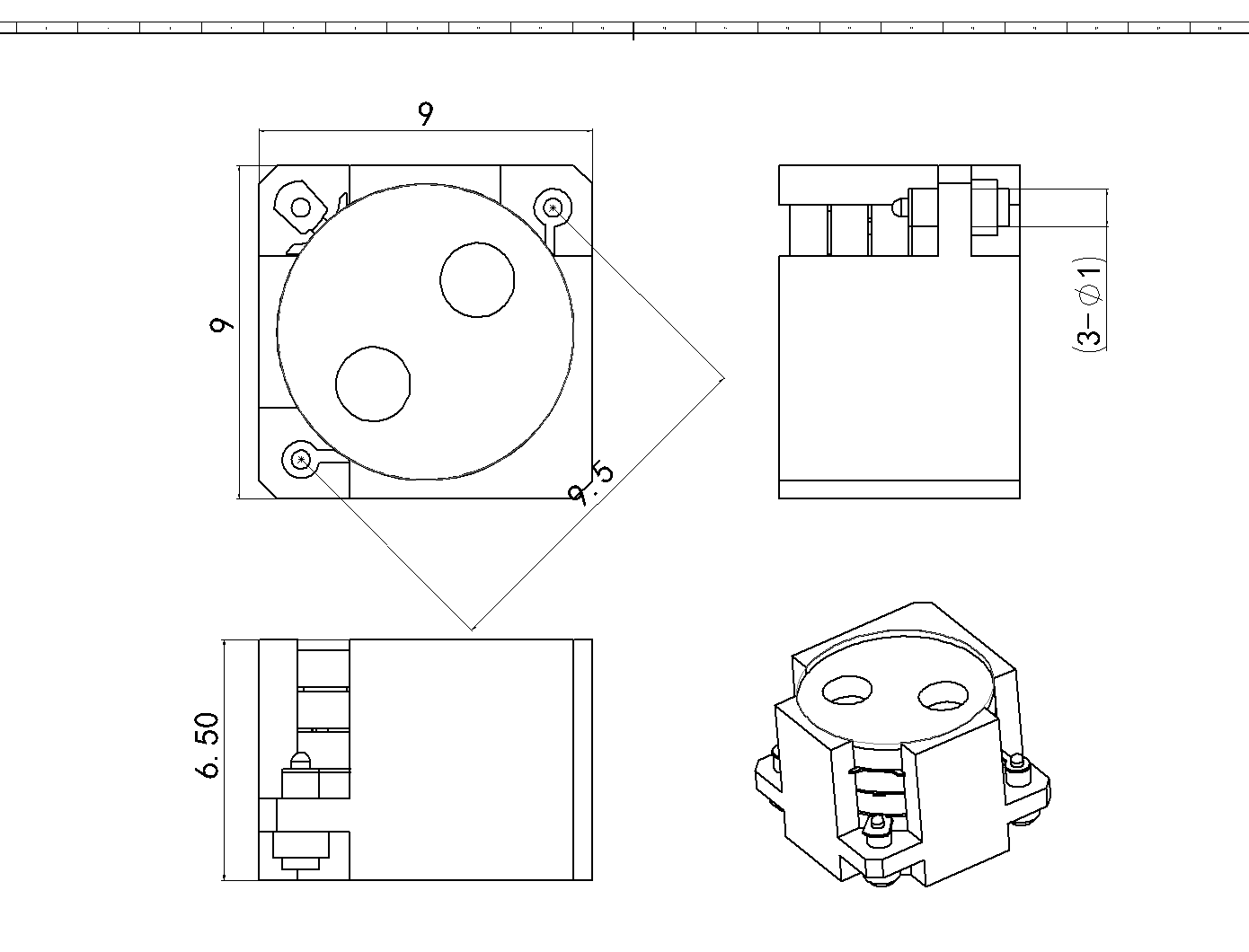

Size |
9*9mm |
|
Operating Temp ( degC) |
-40 to 125 |
Features |
|
|
Stripline technology |
|
|
Surface mount package |
|
|
Wide frequency range coverage |
|
|
High isolation |
|
|
Low insertion loss |
|
|
High power handling up to 50W |
|
|
Wide operating temperature range (-40 degC to +125 degC) |
|
Applications |
|
|
Designed for robust performance in communication systems. |
|
