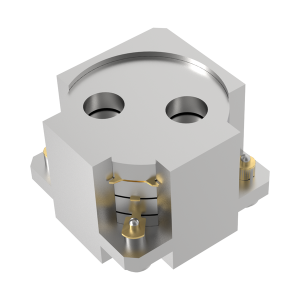

2.11 GHz to 2.17 GHz, 0.35 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators OH121A-2110-2170
Stripline technology
Surface mount package
Wide frequency range coverage
High isolation
Low insertion loss
High power handling up to 50W
Wide operating temperature range (-40 degC to +125 degC)
- Description
- Datasheet

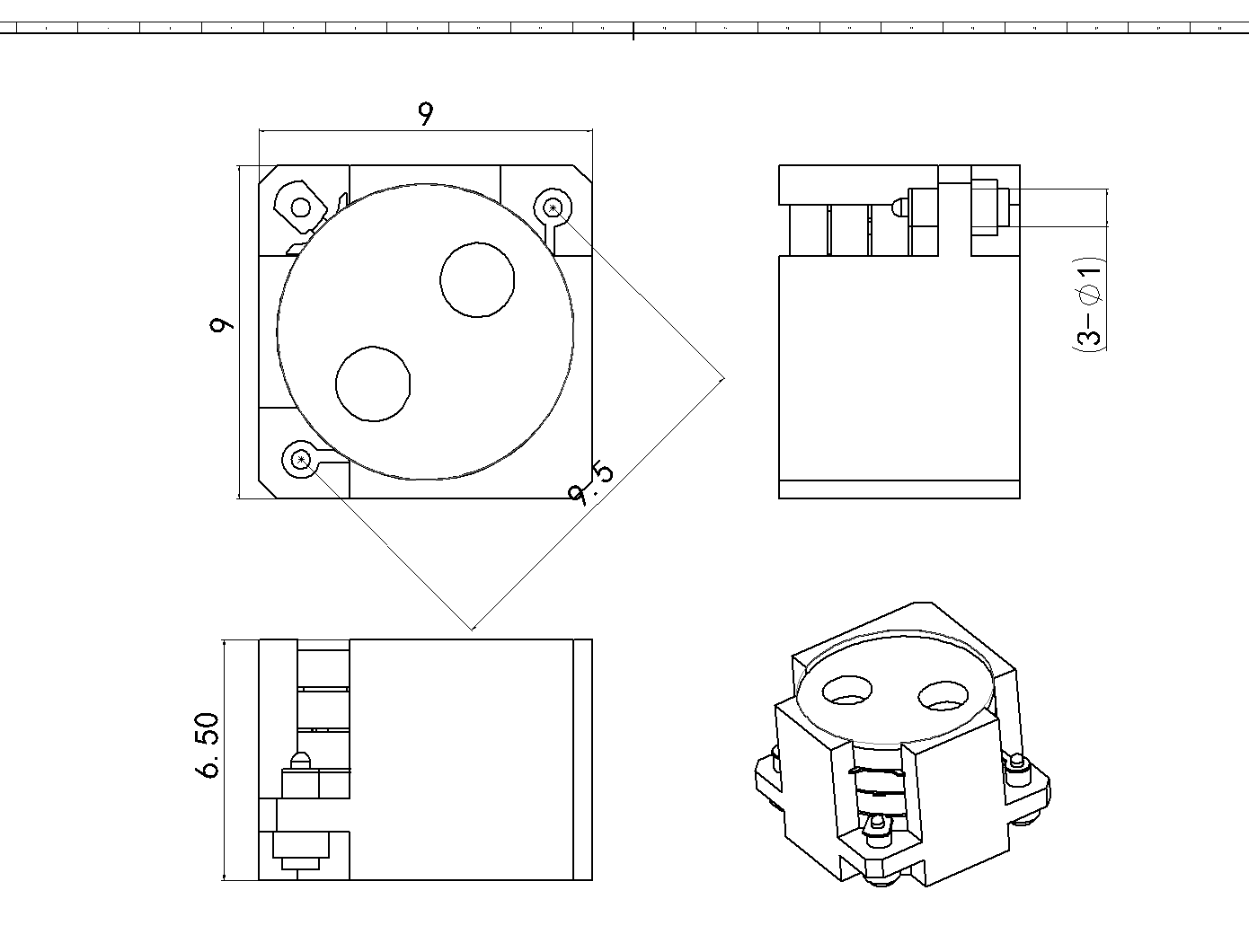

- Outline
- Reviews (0)
Description
The product named OH121A-2110-2170 is high-performance surface mount circulator designed for stripline applications, offering excellent isolation and low insertion loss across its operating frequency range.
OH121A-2110-2170 | |
| 2.11 GHz to 2.17 GHz, 0.35 dB Insertion Loss, 20.0 dB Isolation, SMD Series Circulators OH121A-2110-2170 | |
Property | Value |
| Frequency (MHz) | 2110-2170 |
| Return Loss (dB) | 20 |
| Isolation (dB) | 20 |
| Insertion Loss (dB) | 0.35 |
| IMD3 (dBc) | -60 |
| Power (W) | 50 |
| Power note | 2*5W |
| Size | 9*9mm |
| Operating Temp ( degC) | -40 to 125 |
Features | |
| Stripline technology | |
| Surface mount package | |
| Wide frequency range coverage | |
| High isolation | |
| Low insertion loss | |
| High power handling up to 50W | |
| Wide operating temperature range (-40 degC to +125 degC) | |
Applications | |
| Designed for robust performance in communication systems. | |
