10.5 dBi Gain, 0.8 GHz to 8 GHz Broadband Dual Ridged Horn Antenna OBH-880

HOT
-15%

10.5 dBi Gain, 0.8 GHz to 8 GHz Broadband Dual Ridged Horn Antenna OBH-880

$1140

The OBH-880 Dual-Ridged Horn Antenna is expertly engineered for precision and performance, offering broadband operation starting from 800MHz. Designed with portability in mind, the OBH-880 weighs just 1760g, lighter than a standard 14-inch laptop, ensuring easy transport and deployment in on-site testing scenarios. It comes with a compact carrying box, offering maximum convenience for field use, and allowing seamless connectivity and testing wherever you go. For professionals seeking a high-performance, lightweight antenna for broadband communication and RF testing, the OBH-880 offers the ideal blend of mobility, precision, and comprehensive data for accurate system integration.

With the above benefits, the OBH-880 is ideal for various applications. First of all, it is particularly suited for telecommunications testing, covering technologies like 4G LTE, Wi-Fi (2.4GHz/5GHz), and Bluetooth, ensuring reliable performance for testing wireless communication systems within this frequency range. This antenna also excels in TV broadcasting and UHF/VHF applications, supporting the lower end of the frequency spectrum (0.8GHz) for digital TV broadcasting and radio communications. On top of that, its performance in EMC testing is highly effective, ensuring that equipment meets electromagnetic compatibility standards in lower to mid-frequency ranges, making it an ideal tool for EMC compliance testing. Additionally, it is suitable for RF testing for IoT devices, supporting technologies like LoRa and NB-IoT, which operate in lower frequency bands. This antenna is also used for general RF and microwave testing, covering a broad spectrum of RF applications in the lower-frequency microwave range, offering a versatile solution for engineers and researchers.Dual-Ridged Horn Antenna:ttps://www.rfecho.com/product-category/emc-antenna/emc-broadband-dual-ridged-horn-antenna/

Description

The OBH-880 Dual-Ridged Horn Antenna is expertly engineered for precision and performance, offering broadband operation starting from 800MHz. Designed with portability in mind, the OBH-880 weighs just 1760g, lighter than a standard 14-inch laptop, ensuring easy transport and deployment in on-site testing scenarios. It comes with a compact carrying box, offering maximum convenience for field use, and allowing seamless connectivity and testing wherever you go. For professionals seeking a high-performance, lightweight antenna for broadband communication and RF testing, the OBH-880 offers the ideal blend of mobility, precision, and comprehensive data for accurate system integration.

With the above benefits, the OBH-880 is ideal for various applications. First of all, it is particularly suited for telecommunications testing, covering technologies like 4G LTE, Wi-Fi (2.4GHz/5GHz), and Bluetooth, ensuring reliable performance for testing wireless communication systems within this frequency range. This antenna also excels in TV broadcasting and UHF/VHF applications, supporting the lower end of the frequency spectrum (0.8GHz) for digital TV broadcasting and radio communications. On top of that, its performance in EMC testing is highly effective, ensuring that equipment meets electromagnetic compatibility standards in lower to mid-frequency ranges, making it an ideal tool for EMC compliance testing. Additionally, it is suitable for RF testing for IoT devices, supporting technologies like LoRa and NB-IoT, which operate in lower frequency bands. This antenna is also used for general RF and microwave testing, covering a broad spectrum of RF applications in the lower-frequency microwave range, offering a versatile solution for engineers and researchers .Dual-Ridged Horn Antenna:ttps://www.rfecho.com/product-category/emc-antenna/emc-broadband-dual-ridged-horn-antenna/

SPEC

Broadband Horn Antenna Specifications

10.5 dBi Gain, 0.8 GHz to 8 GHz

OBH-880

Property

Value

Min. Frequency (GHz)

0.8

Max. Frequency (GHz)

8

Gain(dBi)

10.5

VSWR (Max.)

2.7

Polarization

Single Linear

Cross Polar Isolation (dB)

50

Impedance (?)

50

Features

Linear polarized with high polarization purity

Frequency from 0.8 GHz to 8 GHz

Low return loss / VSWR

Wide bandwidth

Uniform Gain

High Power Handling Capability

Radiation pattern contains only one main lobe over the entire frequency range

Each antenna is calibrated individually in line with ANSI C63.5-2006

PDF

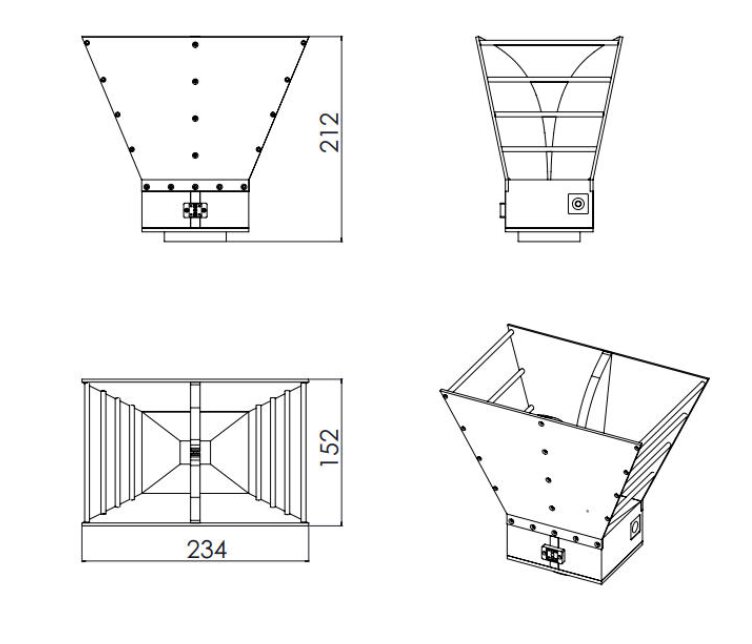

Outline

Additional information

Min. Frequency (GHz)

0.8

Max. Frequency (GHz)

8

Gain (dBi)

10.5

VSWR (Max.)

2.7

Cross Polar Isolation (dB)

50

Polarization

Single Linear

Impedance (Ω)

50
