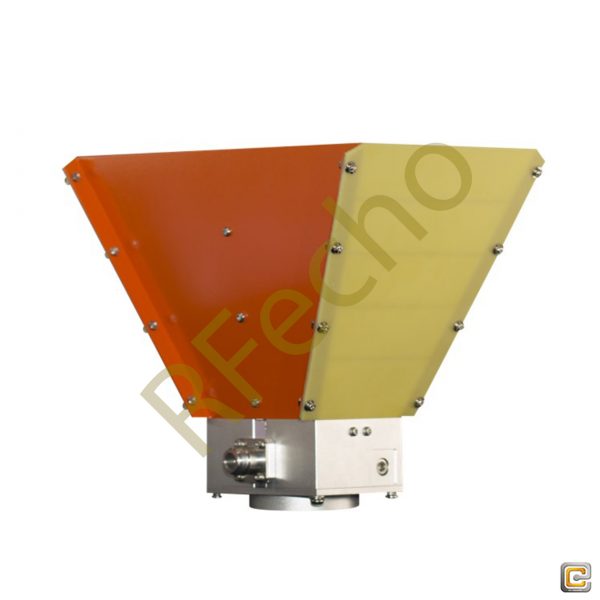

10.5 dBi Gain, 1 GHz to 18 GHz Broadband Dual Ridged Horn Antenna OBH-10180
$1599
The OBH-10180 Dual-Ridged Horn Antenna is a meticulously engineered solution, that operates across a broad frequency range from 1GHz to 18GHz. This antenna ensures reliable performance across its entire operational bandwidth, maintaining a VSWR of less than 2.0 and guaranteeing optimal power transmission and minimal signal reflection. Despite its high-performance capabilities, the OBH-10180 is lightweight and portable, weighing just 1420g. It includes a carrying box for easy transportation, making it ideal for field tests and on-site applications.
The antenna is equipped with an N-type interface, ensuring compatibility with various systems. Its durable design allows it to handle power levels exceeding 200W, making it a robust choice for demanding environments. For those seeking precision, the OBH-10180 comes with comprehensive test data, including metrics such as antenna factors, Gain, VSWR, and direction patterns, ensuring seamless integration into your system for precise testing and optimal performance.
The OBH-10180 is a versatile tool designed for a wide range of applications. Its frequency range makes it ideal for telecommunications and 5G testing, including 5G NR Sub-6GHz, Wi-Fi, and other high-frequency communication systems. Additionally, it is well-suited for satellite communication, covering frequencies in the C-band, X-band, and part of the Ku-band, making it perfect for both uplink and downlink testing in satellite systems. This antenna is also commonly used in radar systems, especially in higher-frequency radar applications such as military, airborne, and weather radar, which often operate in the X-band and above. Moreover, the antenna is frequently used in EMC testing, as it supports testing across a broad range of electronic devices and systems in the mid to high-frequency spectrum. The higher end of its frequency range makes it ideal for microwave testing and microwave communication systems, ensuring reliable performance in various RF testing environments.Dual-Ridged Horn Antenna:ttps://www.rfecho.com/product-category/emc-antenna/emc-broadband-dual-ridged-horn-antenna/
- Description
- Additional information
- Reviews (0)
Description
The OBH-10180 Dual-Ridged Horn Antenna is a meticulously engineered solution, that operates across a broad frequency range from 1GHz to 18GHz. This antenna ensures reliable performance across its entire operational bandwidth, maintaining a VSWR of less than 2.0 and guaranteeing optimal power transmission and minimal signal reflection. Despite its high-performance capabilities, the OBH-10180 is lightweight and portable, weighing just 1420g. It includes a carrying box for easy transportation, making it ideal for field tests and on-site applications.
The antenna is equipped with an N-type interface, ensuring compatibility with various systems. Its durable design allows it to handle power levels exceeding 200W, making it a robust choice for demanding environments. For those seeking precision, the OBH-10180 comes with comprehensive test data, including metrics such as antenna factors, Gain, VSWR, and direction patterns, ensuring seamless integration into your system for precise testing and optimal performance.
The OBH-10180 is a versatile tool designed for a wide range of applications. Its frequency range makes it ideal for telecommunications and 5G testing, including 5G NR Sub-6GHz, Wi-Fi, and other high-frequency communication systems. Additionally, it is well-suited for satellite communication, covering frequencies in the C-band, X-band, and part of the Ku-band, making it perfect for both uplink and downlink testing in satellite systems. This antenna is also commonly used in radar systems, especially in higher-frequency radar applications such as military, airborne, and weather radar, which often operate in the X-band and above. Moreover, the antenna is frequently used in EMC testing, as it supports testing across a broad range of electronic devices and systems in the mid to high-frequency spectrum. The higher end of its frequency range makes it ideal for microwave testing and microwave communication systems, ensuring reliable performance in various RF testing environments .Dual-Ridged Horn Antenna:ttps://www.rfecho.com/product-category/emc-antenna/emc-broadband-dual-ridged-horn-antenna/
SPEC
Broadband Horn Antenna Specifications |
|
10.5 dBi Gain, 1 GHz to 18 GHz |
|
OBH-10180 |
|
Property |
Value |
Min. Frequency (GHz) |
1 |
Max. Frequency (GHz) |
18 |
Gain(dBi) |
10.5 |
VSWR (Max.) |
2 |
Polarization |
Single Linear |
Cross Polar Isolation (dB) |
50 |
Impedance (?) |
50 |
Features |
|
Linear polarized with high polarization purity |
|
Frequency from 1 GHz to 18 GHz |
|
Low return loss / VSWR |
|
Wide bandwidth |
|
Uniform Gain |
|
High Power Handling Capability |
|
Radiation pattern contains only one main lobe over the entire frequency range |
|
Each antenna is calibrated individually in line with ANSI C63.5-2006 |

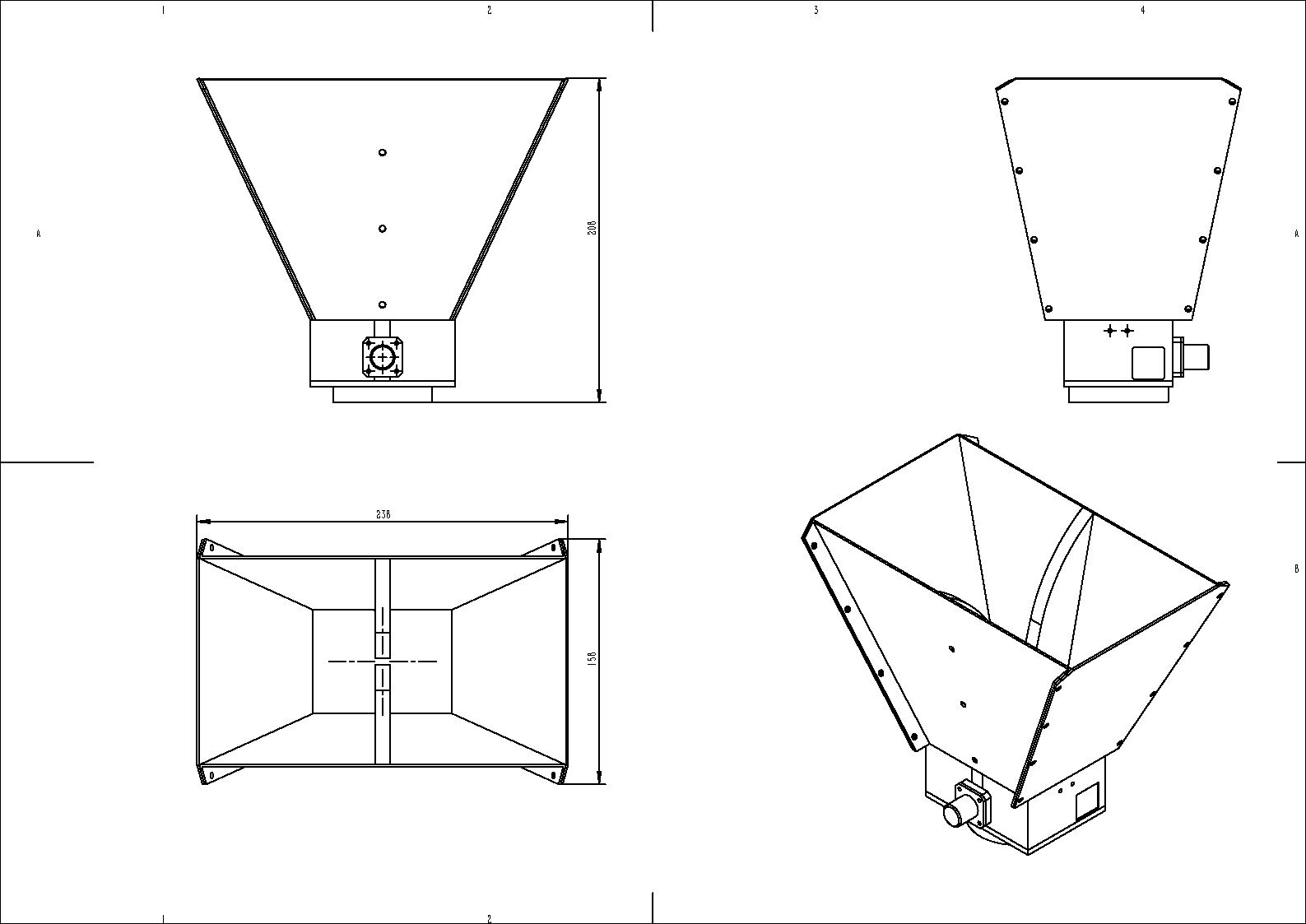

Outline
Additional information
Min. Frequency (GHz) | 1 |
---|---|
Max. Frequency (GHz) | 18 |
Gain (dBi) | 10.5 |
VSWR (Max.) | 2 |
Cross Polar Isolation (dB) | 50 |
Polarization | Single Linear |
Impedance (Ω) | 50 |
