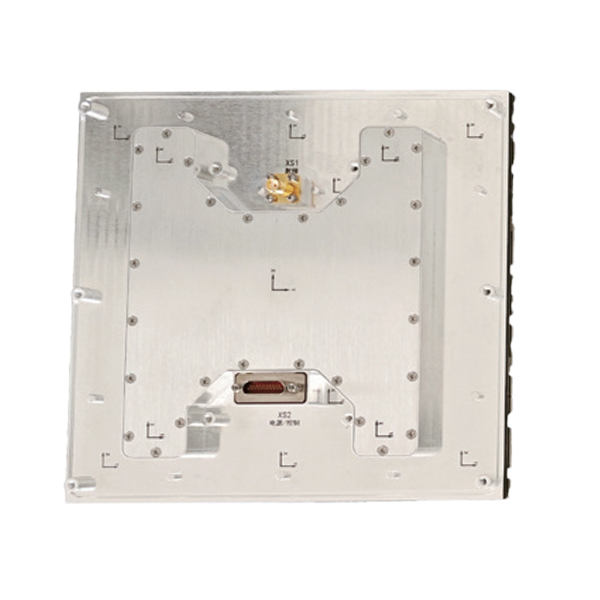

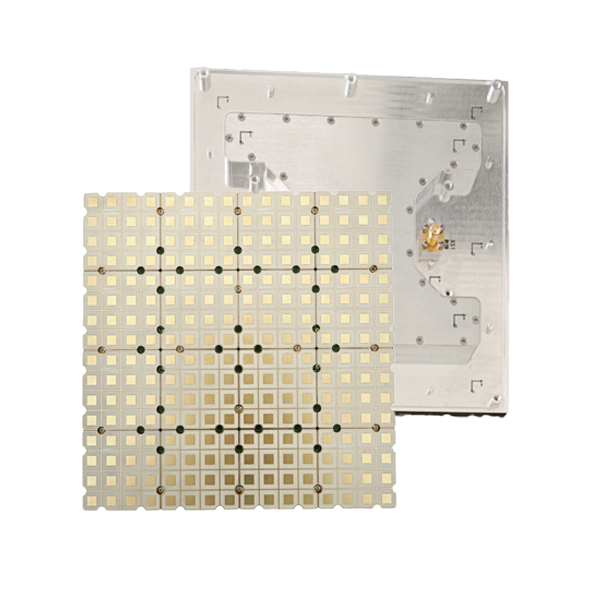

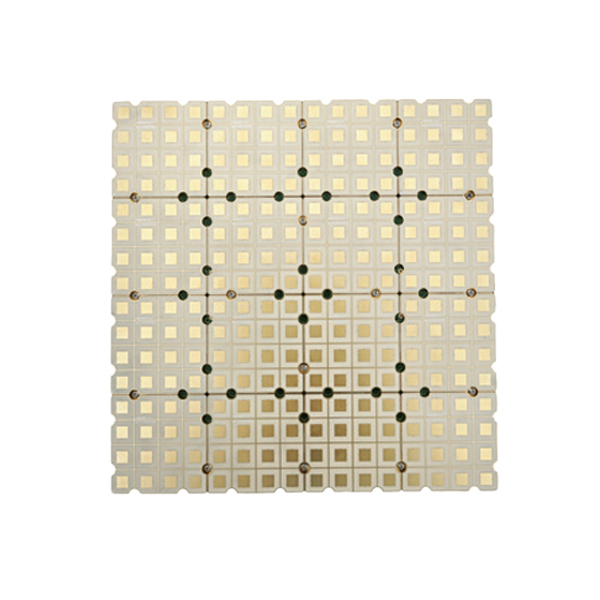

10.7GHz to 12.7GHz Ku Single-Beam Rx Subarray
This Ku-band phased array subarray integrates 256 receiving elements and adopts 2D electronic scanning to realize automatic satellite alignment and fast tracking. With a slim and compact design, it supports flexible splicing and expansion to adapt to various application scenarios. Equipped with fully China-made components and powered by 12V, it works stably and reliably in harsh wide-temperature environments ranging from -40 to 70 degree.
- Description
- Datasheet
- Reviews (0)
Description
This Ku-band phased array subarray integrates 256 receiving elements and adopts 2D electronic scanning to realize automatic satellite alignment and fast tracking. With a slim and compact design, it supports flexible splicing and expansion to adapt to various application scenarios. Equipped with fully China-made components and powered by 12V, it works stably and reliably in harsh wide-temperature environments ranging from -40 to 70 degree.
OKUPA-1256-S-Rx |
|
|
10.7GHz to 12.7GHz Ku Single-Beam Rx Subarray |
|
Property |
Value |
|
Working Frequency |
10.7GHz~12.7GHz |
|
Polarization |
LHCP/RHCP, switchable |
|
Scanning Range (Azimuth) |
0~360deg |
|
Scanning Range (Off-axis angle) |
±70deg |
|
Beam Quantity |
1 |
|
G/T (Normal direction) |
Normal direction:≥3.5 dB/K@12.7GHz(40K) |
|
EIRP @14.1GHz (LP) |
/ |
|
EIRP @14.1GHz (CP) |
/ |
|
Scanning Loss @30deg |
≤2.5dB |
|
Scanning Loss @45deg |
≤3.5dB |
|
Scanning Loss @60deg |
≤5.5dB |
|
Scanning Loss @70deg |
≤7.5dB |
|
Sidelobe Suppression (Normal) |
≥12dB |
|
Sidelobe Suppression @30deg |
≥11dB |
|
Sidelobe Suppression @45deg |
≥10dB |
|
Sidelobe Suppression @60deg |
≥9dB |
|
Sidelobe Suppression @70deg |
≥8dB |
|
Axial Ratio @11.7GHz (Normal) |
≤2.0dB |
|
XPI @14.1GHz |
/ |
|
Pointing Accuracy |
≤ 1/8 HPBW |
|
HPBW |
7.4deg±0.5deg@11.7GHz, Normal direction |
|
Beam Switching Time |
≤100us |
|
SWR |
≤2.0 |
|
IBW |
≥300MHz |
|
RF Input |
/ |
|
Gain |
≥60.0dB(Including antenna gain) |
|
Operating Voltage |
12V±1V |
|
Power Consumption |
≤25.0W @ CP |
|
Working Temperature |
-40degC~+70degC |
|
Dimensions |
176mm*176mm*19.6mm |
|
RF Output Interface |
SMA-K(WS Ring) |
|
Power Control Interface |
J30JM-21ZKP |
|
Control Connector Interface |
/ |
|
Power Connector Interface |
/ |
|
Weight |
≤1.0Kg |
Features |
|
|
Subarrays can be infinitely expanded in two dimensions to form large arrays |
|
|
Suitable for use on various platform such as vehicles,ships,and aircraft |
|
|
Supports LHCP/RHCP switchable polarization |
|
|
Phased array 2D electronic scanning,no mechanical rotation, with low profile and strong reliability |
|
|
Compact size and light weight |
|
Applications |
|
|
Independent beam control |
|
|
Form large arrays |
|
|
Subarrays can be infinitely expanded |
|
|
Subarrays support electronic scanning |
|
