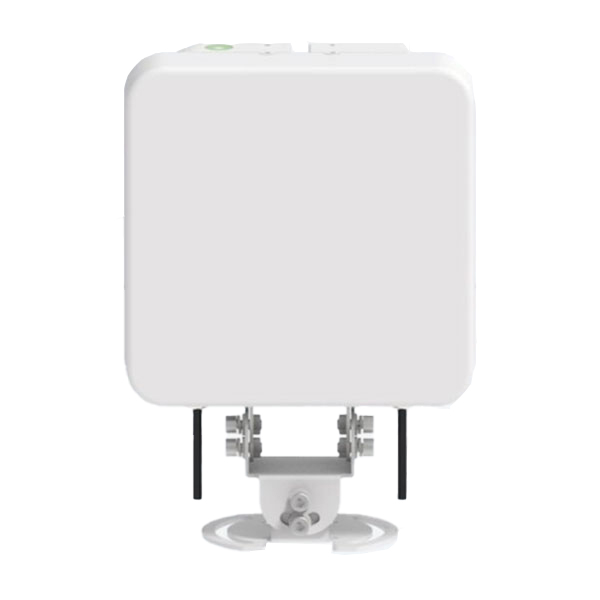

OT-MTTR-L2 Large Scene Wide Area Radar
Operating frequency of 79-80GHz for strong adaptability.
Wide-area tracking: up to 10 lanes and 1000m range.
High capacity: detects up to 512 targets simultaneously.
Target capture rate > 98%, classification accuracy > 90%.
Supports adaptive traffic light control and guidance functions.
Aerospace-grade quality for 24/7 all-weather operation.
High track tracking accuracy (>= 97%) and speed accuracy (>= 97.5%).
Robust physical design with IP66 rating and EMC compliance.
- Description
- Datasheet
- Reviews (0)
Description
The OT-MTTR-L2 is a high-performance 79-80GHz wide-area radar designed for large-scale traffic monitoring. It features stable tracking across 10 lanes and up to a 1000m range, capable of detecting up to 512 targets simultaneously. With a target capture rate exceeding 98% and identification accuracy over 90%, it supports advanced applications such as adaptive traffic light control, traffic guidance, and big data analysis. Built to aerospace quality standards, the OT-MTTR-L2 ensures reliable all-weather operation 24/7. Its robust design is ideal for smart city initiatives, traffic flow optimization, and intersection management, providing high-precision data for intelligent transportation systems.
OT-MTTR-L2 | |
| OT-MTTR-L2 Large Scene Wide Area Radar | |
Property | Value |
| Abnormal Parking Accuracy | >= 95% |
| Angle Accuracy | Long: +/-0.2 deg, Short: +/-0.8 deg |
| Angle Resolution | Long: 1 deg, Short: 7 deg |
| Base Hole Diameter | R3.25mm |
| Congestion Event Accuracy | >= 95% |
| Corrosion Grade | IEC60068-2-11 |
| Critical Speed Range | -200km/h ~ +200km/h |
| Dimensions | 189.5mm x 98.0mm x 266.0mm |
| Distance Resolution | Long: 1.8m, Short: 0.4m |
| EMC | IEC61000-4-5: 2014 |
| Horizontal FOV | Long: -4.5 deg ~ +4.5 deg, Short: -45 deg ~ +45 deg |
| Interface | RJ45 / RS485 |
| Lane Flow Accuracy | >= 98% |
| Max Tracking Targets | 512 |
| Monitored Lanes | 10 lanes |
| Operating Humidity | 0% ~ 90% @ RH (50 degC) |
| Operating Temperature | -40 degC ~ +85 degC |
| Power Consumption | 8W |
| Power Supply | DC 12V & AC 24V |
| Queue Length Error | <= 10% |
| Range | 0.2m ~ 1000m |
| Range Accuracy | Long: +/-0.4m, Short: +/-0.1m |
| Retrograde Event Accuracy | >= 98% |
| Speed Accuracy | >= 97.5% |
| Speed Resolution | 0.6km/h |
| Statistical Period | 1s ~ 3600s |
| Statistical Sections | (1-10) |
| Target Capture Rate | > 98% |
| Target Identification Accuracy | >= 90% (Oversized, Large, Small vehicles) |
| Track Tracking Accuracy | >= 97% |
| Vertical FOV | Long: 8 deg, Short: 20 deg |
| Waterproof Grade | IP66 |
| Weight | 1.8Kg |
Features | |
| Operating frequency of 79-80GHz for strong adaptability. | |
| Wide-area tracking: up to 10 lanes and 1000m range. | |
| High capacity: detects up to 512 targets simultaneously. | |
| Target capture rate > 98%, classification accuracy > 90%. | |
| Supports adaptive traffic light control and guidance functions. | |
| Aerospace-grade quality for 24/7 all-weather operation. | |
| High track tracking accuracy (>= 97%) and speed accuracy (>= 97.5%). | |
| Robust physical design with IP66 rating and EMC compliance. | |
Applications | |
| Its robust design is ideal for smart city initiatives, traffic flow optimization, and intersection management, providing high-precision data for intelligent transportation systems. | |
