OT-MTTR-L1 Perimeter Security Detection
Supports remote network debugging and upgrades, maintenance-free after initial installation.
Detection range of 5-250 meters; multi-radar systems enable coverage with no blind spots.
Identifies and tracks up to 256 targets simultaneously with target recognition and classification.
Provides 24/7 all-weather operation, effectively solving the limitations of cameras in nighttime monitoring.
Features an intrusion target capture rate of over 99% and classification accuracy exceeding 90%.
Compatible with mainstream market cameras like Hikvision and Dahua.
- Description
- Datasheet
- Reviews (0)
Description

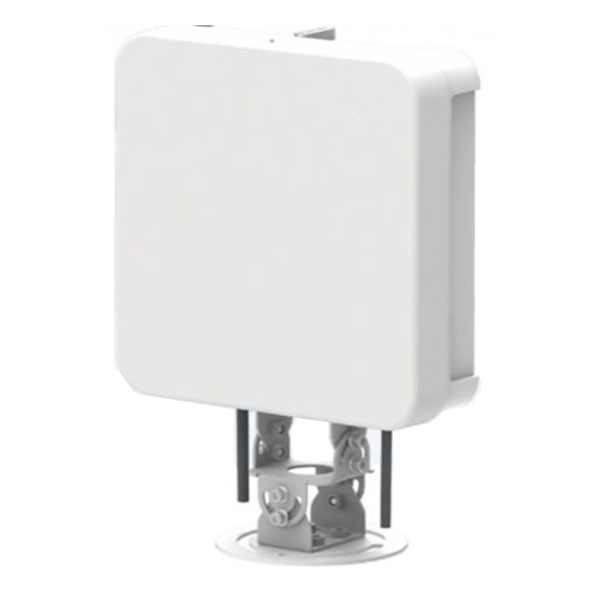

The OT-MTTR-L1 perimeter protection detection radar is one of the highest-performing security radar detectors on the market, widely used for security in key areas such as railways, airports, oil facilities, power stations, historical sites, and critical infrastructure. When an intrusion target is detected, the radar tracks its position and guides cameras to capture video. OT-MTTR-L1 offers a wide detection range, high target capture rate, and stable track recording. It operates 24/7 in all weather conditions, effectively solving night monitoring issues and significantly enhancing security levels for key targets. Its integrated system solutions provide comprehensive, blind-spot-free coverage and precise monitoring for various installation environments.
OT-MTTR-L1 |
|
|
OT-MTTR-L1 Perimeter Security Detection |
|
Property |
Value |
|
Angle Accuracy |
+/-0.1 deg (long range), +/-1 deg (short range) |
|
False Alarm Rate |
< 1 time / 24h |
|
Missed Alarm Rate |
< 1% |
|
Operating Frequency |
77GHz |
|
Radar Installation Height |
4~10m (Recommended 6m) |
|
Range Accuracy |
+/-0.4m (long range), +/-0.1m (short range) |
|
Ranging Range |
0.2~250m |
|
Speed Accuracy |
+/-0.1km/h |
|
Speed Range |
-400km/h ~ +200km/h (- for incoming, + for outgoing) |
|
Time Error |
<= 20ms |
Features |
|
|
Supports remote network debugging and upgrades, maintenance-free after initial installation. |
|
|
Detection range of 5-250 meters; multi-radar systems enable coverage with no blind spots. |
|
|
Identifies and tracks up to 256 targets simultaneously with target recognition and classification. |
|
|
Provides 24/7 all-weather operation, effectively solving the limitations of cameras in nighttime monitoring. |
|
|
Features an intrusion target capture rate of over 99% and classification accuracy exceeding 90%. |
|
|
Compatible with mainstream market cameras like Hikvision and Dahua. |
|
Applications |
|
|
Its integrated system solutions provide comprehensive, blind-spot-free coverage and precise monitoring for various installation environments. |
|
